Components [09/2012 - ]: Illustration

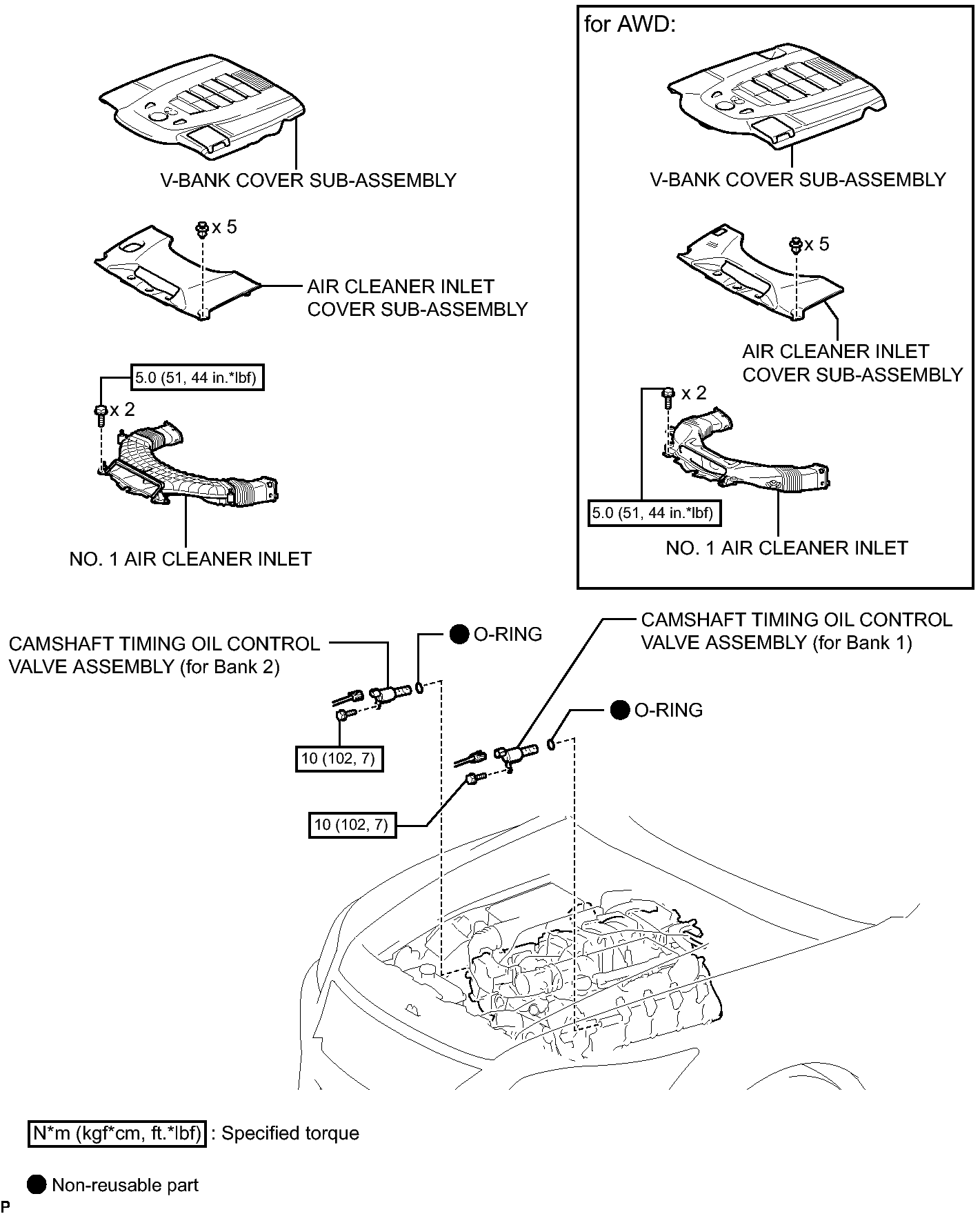

Fig 1: Identifying Camshaft Oil Control Valve Replacement Components With Torque Specifications
GTY415406Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
