Back-Up Light: Notes

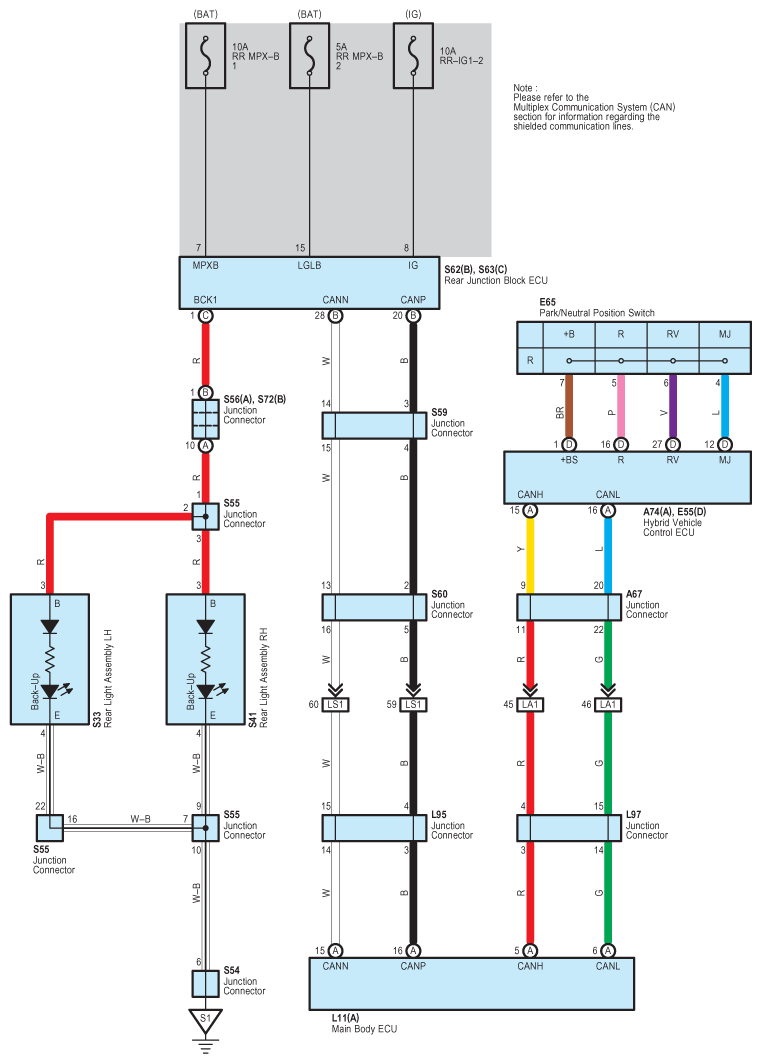

Fig 1: Back-Up Light System Wiring Diagram

G09123225

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
