Fog Light: Notes

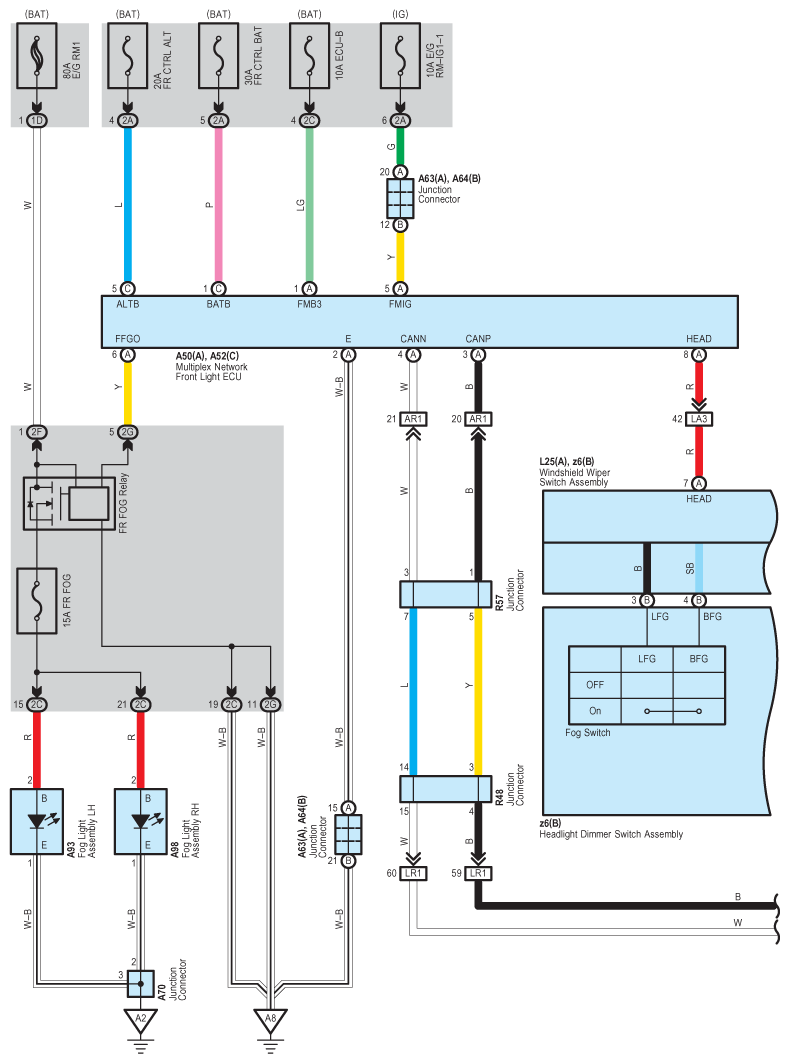

Fig 1: Fog Light System Wiring Diagram (1 Of 3)
G09123226Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

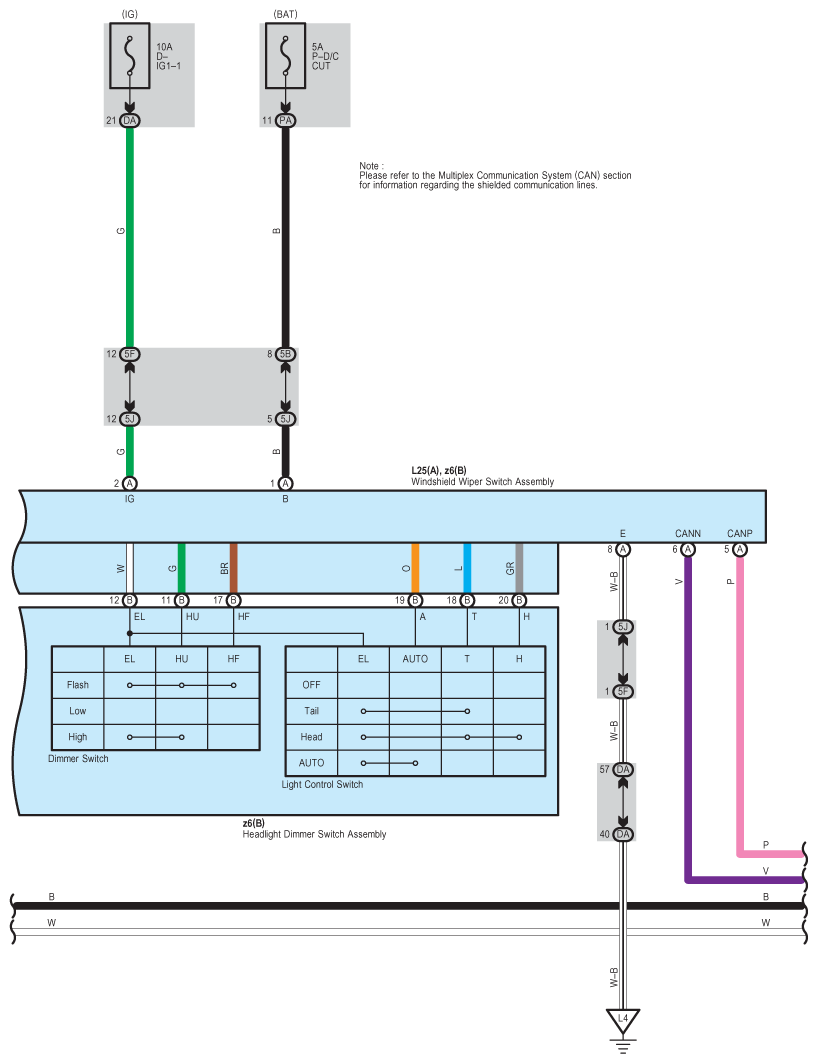

Fig 2: Fog Light System Wiring Diagram (2 Of 3)
G09123227Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

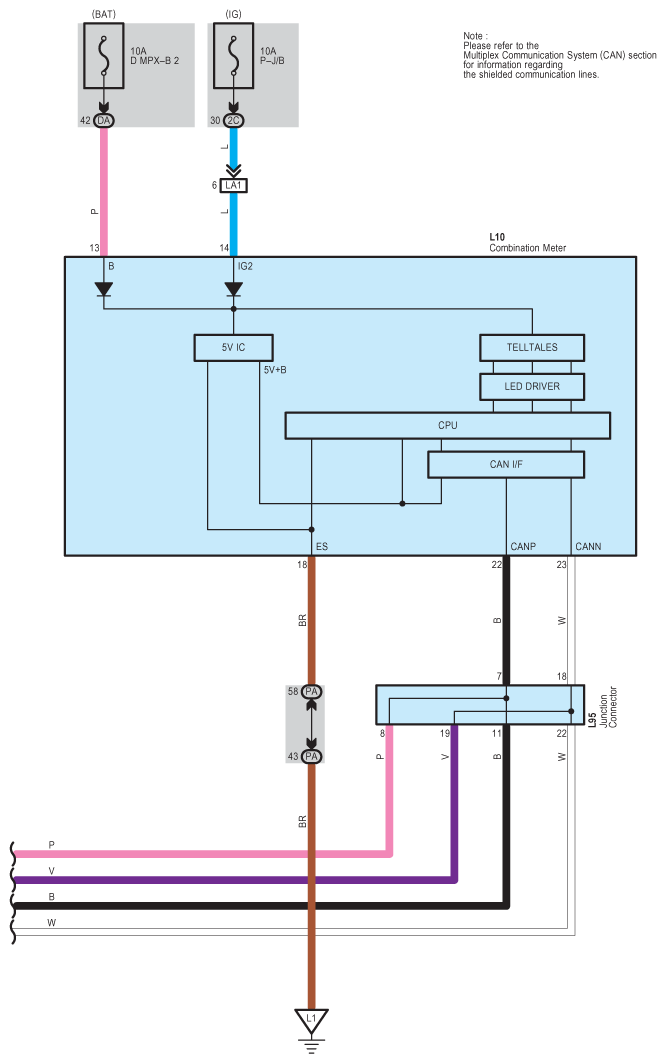

Fig 3: Fog Light System Wiring Diagram (3 Of 3)
G09123228Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
