Lexus
›
2013
›
LS 600hL
›
Repair and Diagnosis
›
Electrical
›
Body Electrical
›
OEM System Circuits
›
LEXUS ENFORM
›
Notes
LEXUS ENFORM: Notes

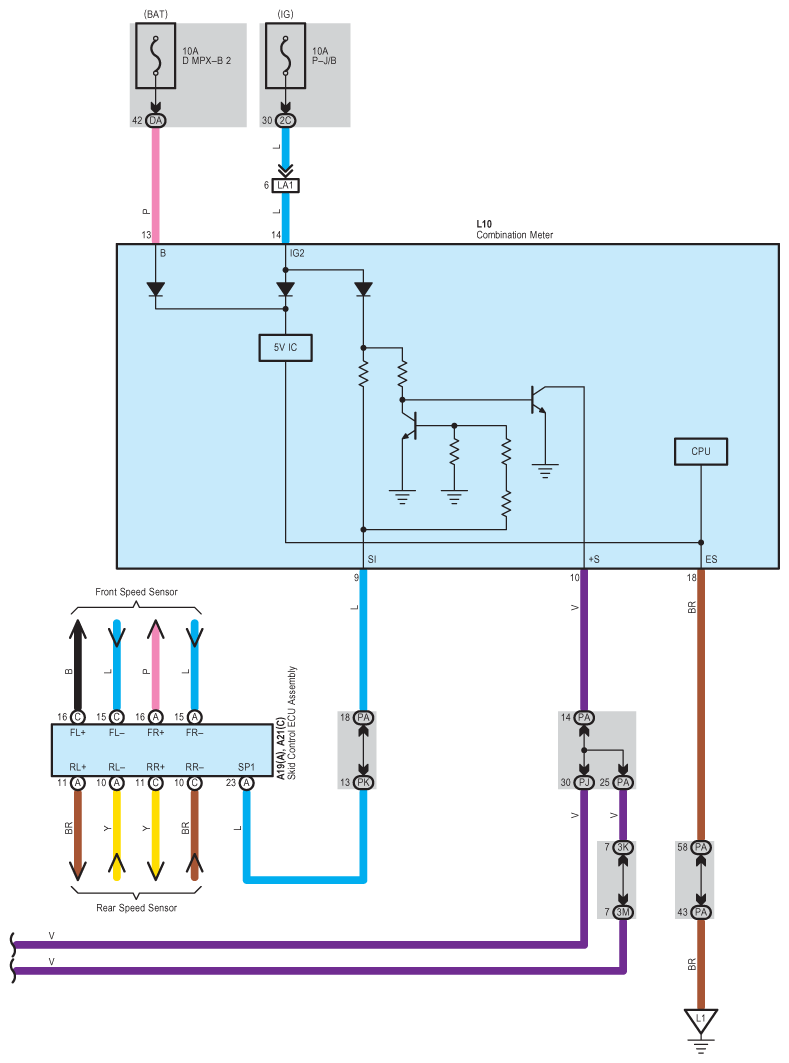

Fig 1: Lexus Enform System Wiring Diagram (1 Of 4)
Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

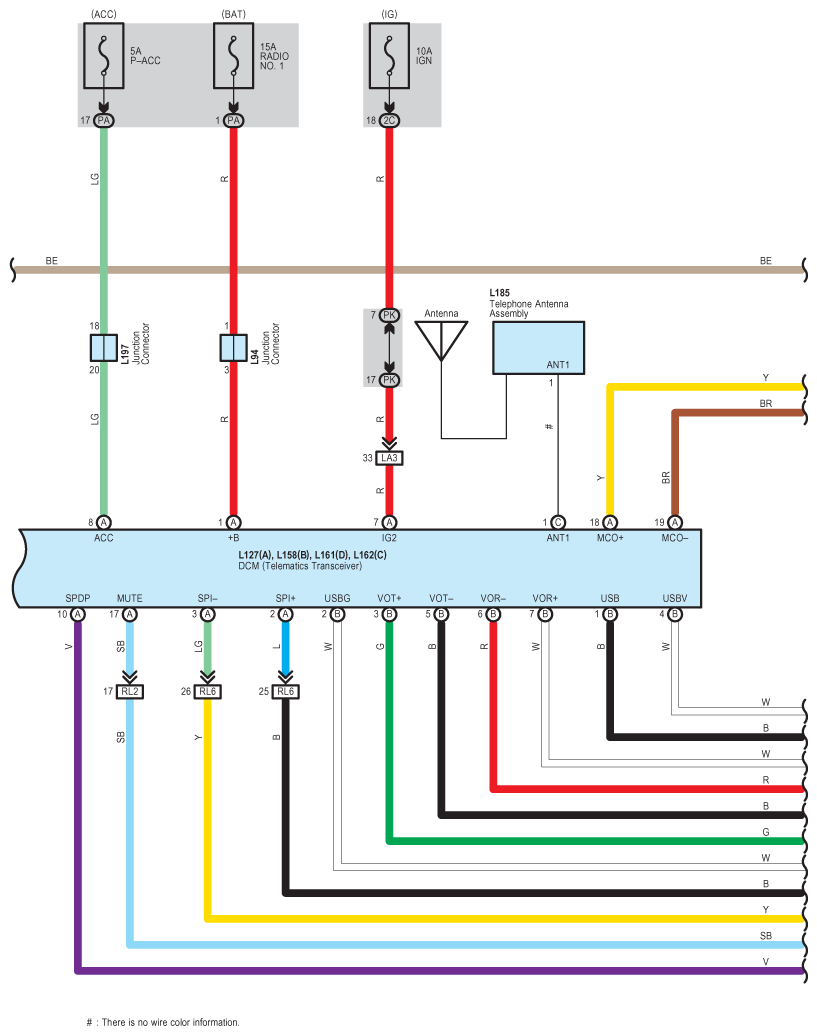

Fig 2: Lexus Enform System Wiring Diagram (2 Of 4)
Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

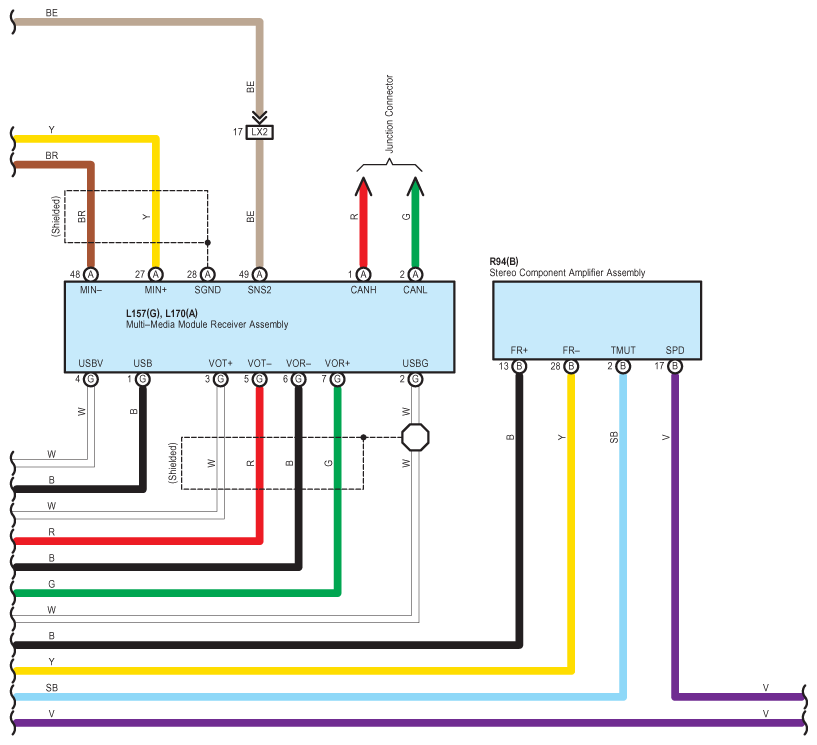

Fig 3: Lexus Enform System Wiring Diagram (3 Of 4)
Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

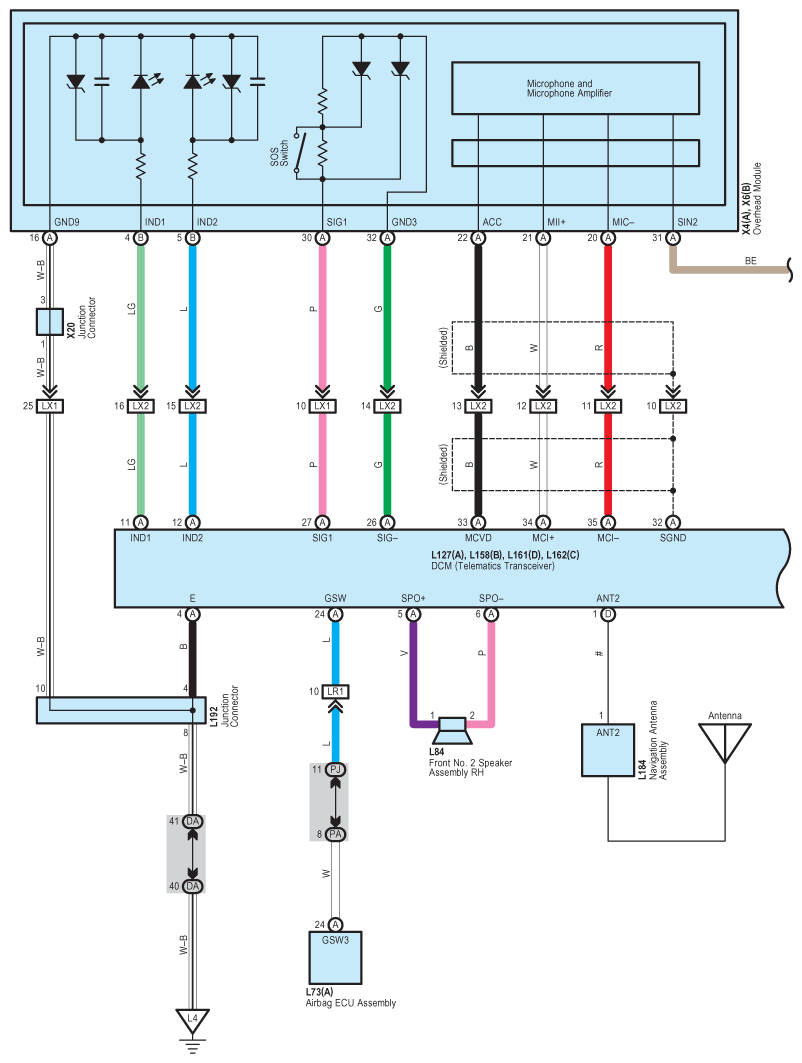

Fig 4: Lexus Enform System Wiring Diagram (4 Of 4)
Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
