Power Trunk Opener and Closer: Notes

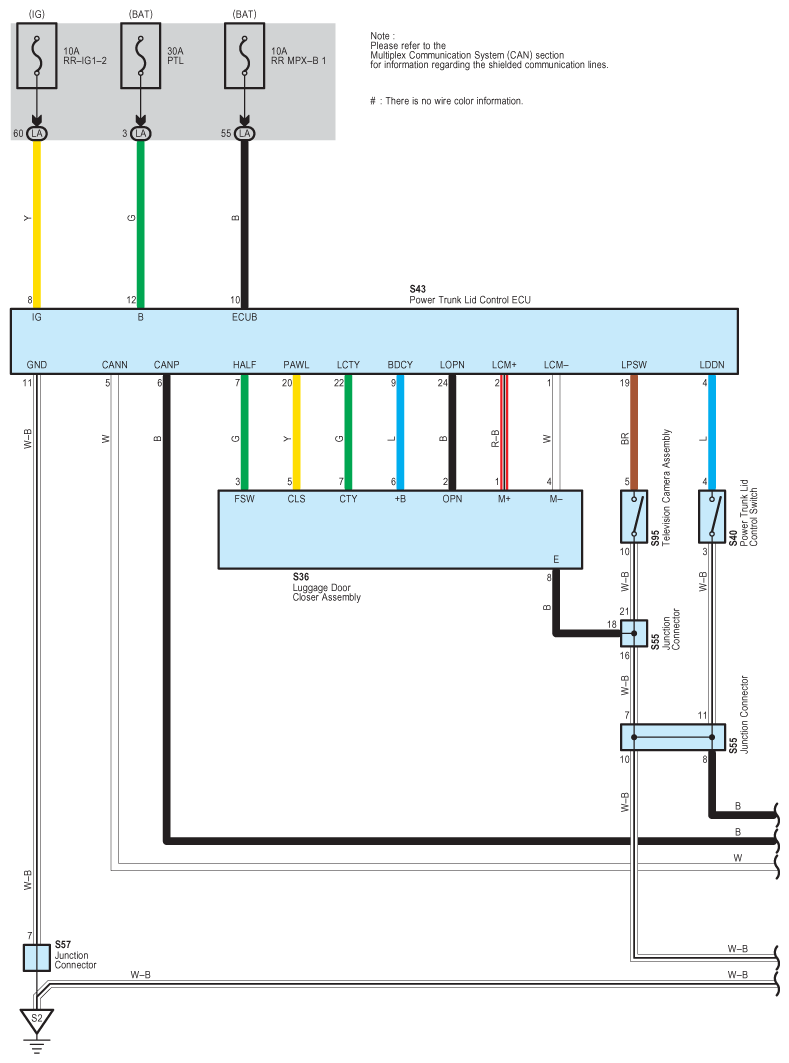

Fig 1: Power Trunk Opener And Closer System Wiring Diagram (1 Of 4)
G09123409Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

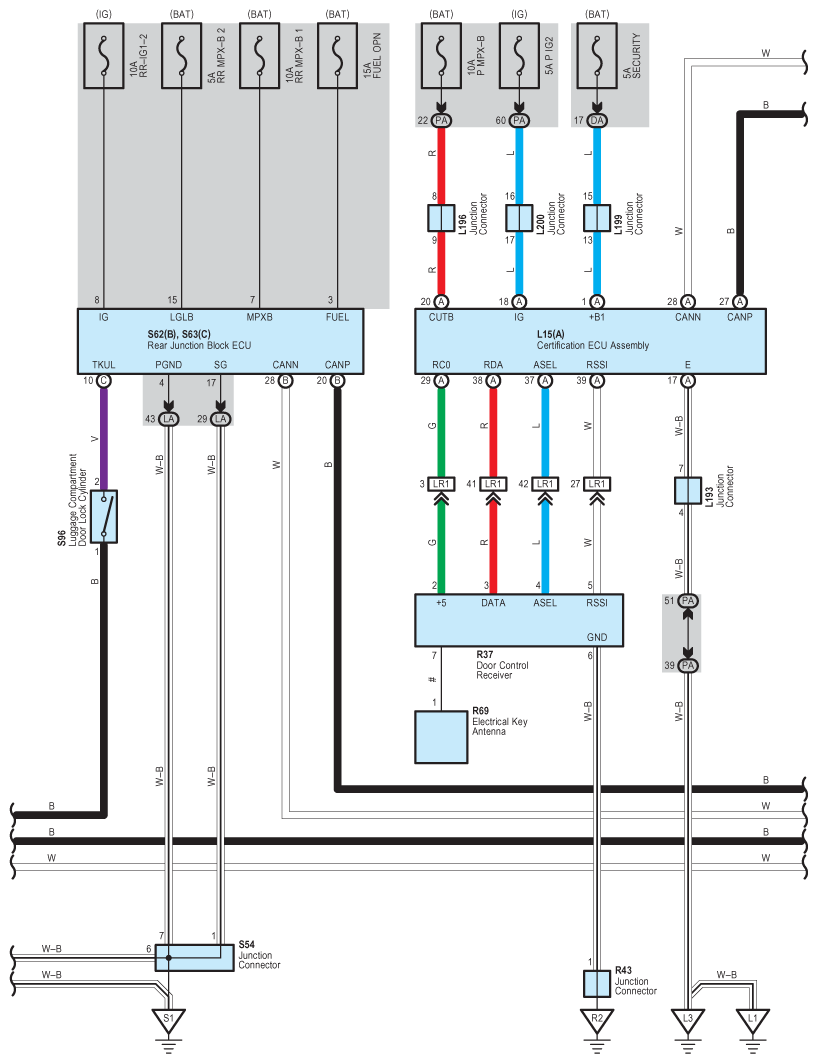

Fig 2: Power Trunk Opener And Closer System Wiring Diagram (2 Of 4)
G09123410Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

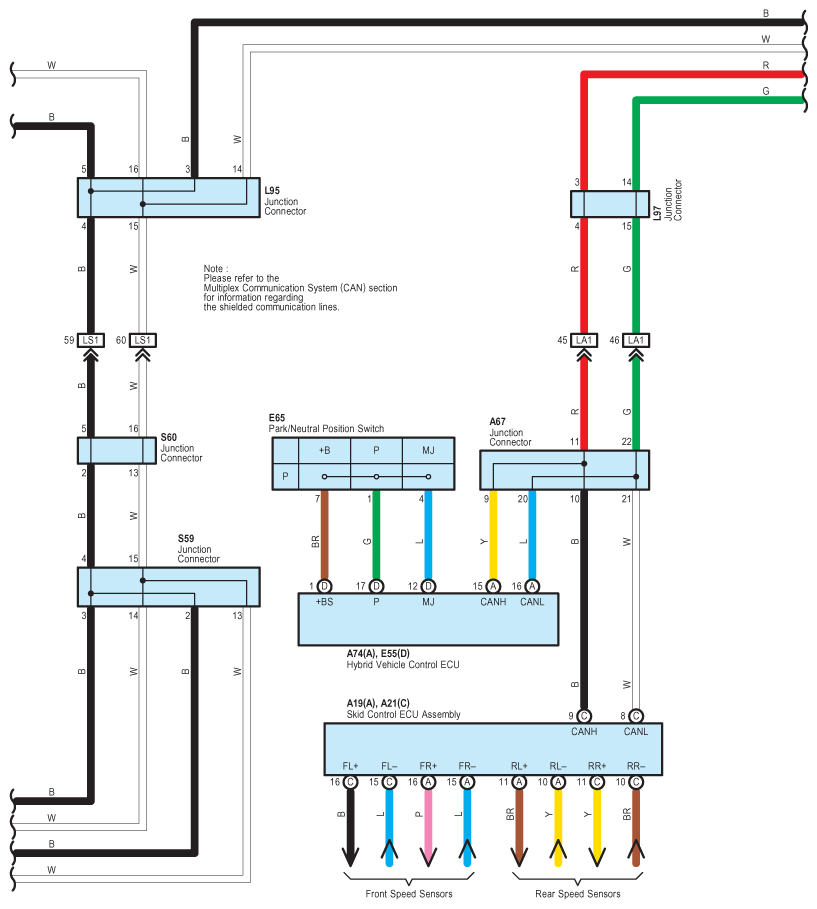

Fig 3: Power Trunk Opener And Closer System Wiring Diagram (3 Of 4)
G09123411Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

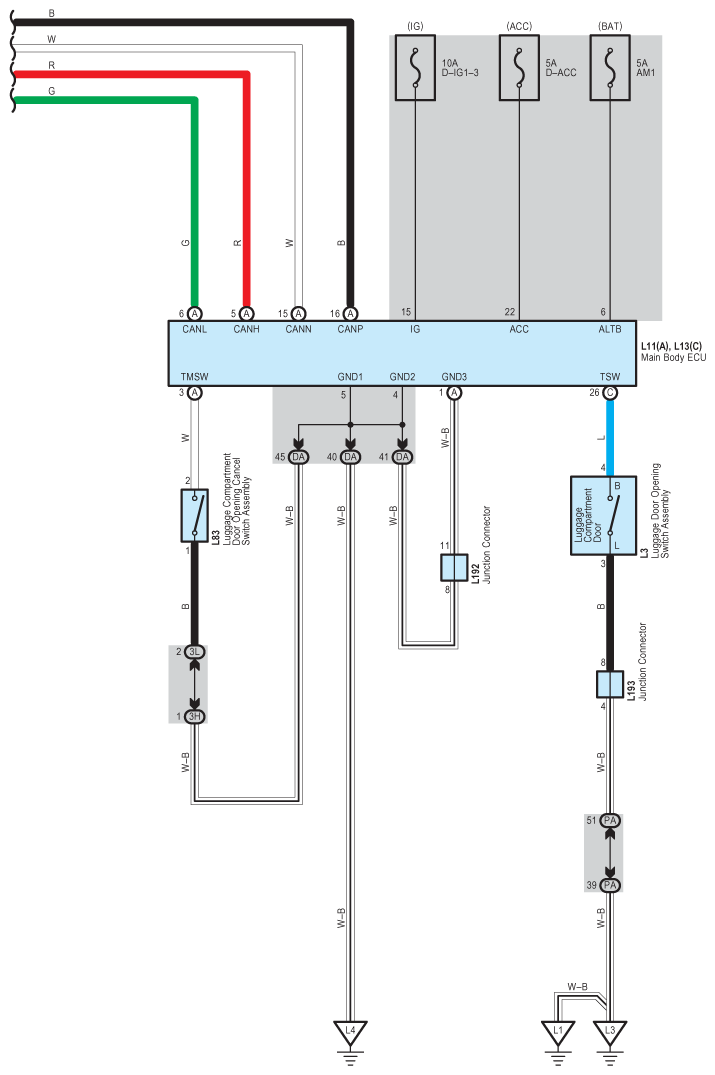

Fig 4: Power Trunk Opener And Closer System Wiring Diagram (4 Of 4)
G09123412Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
