OEM System Circuits: Taillight: Notes

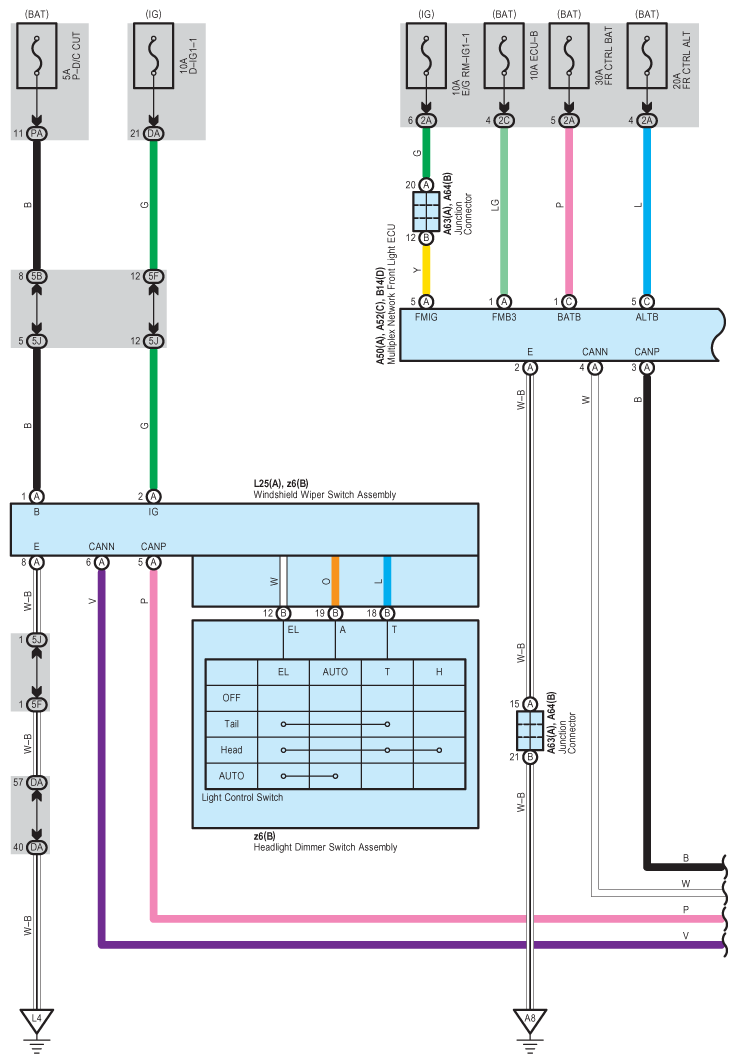

Fig 1: Taillight System Wiring Diagram (1 Of 5)

G09123217

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

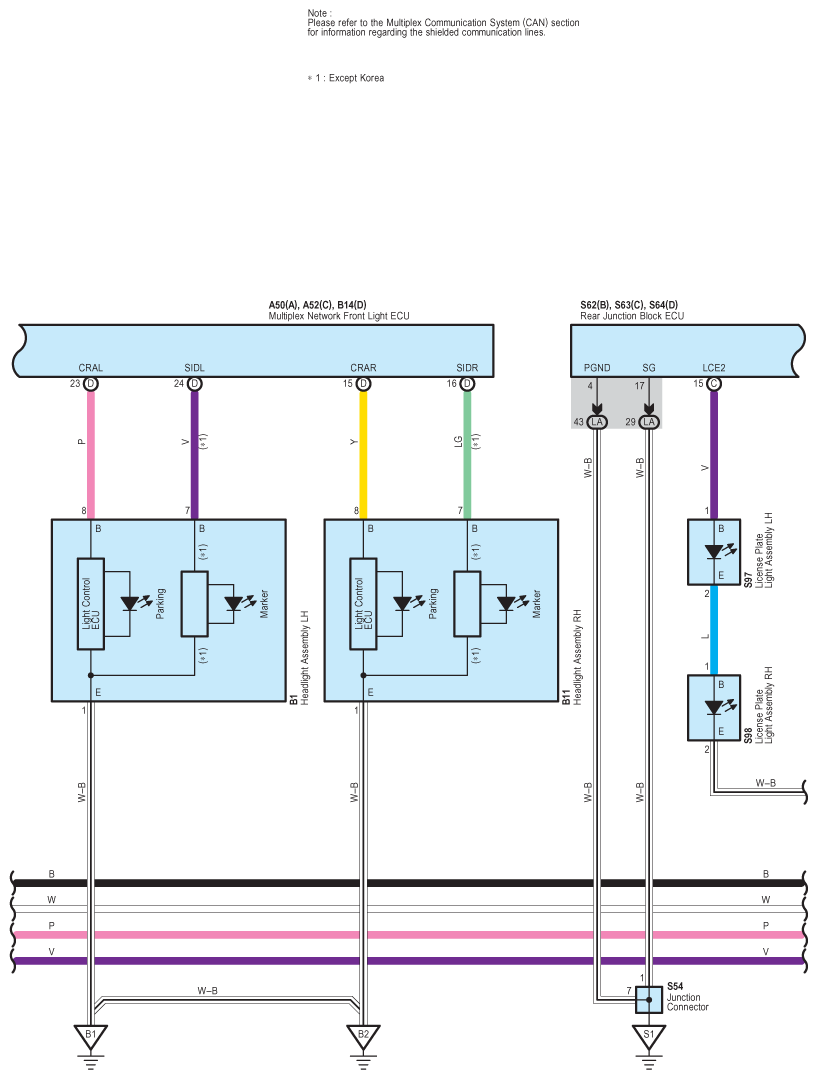

Fig 2: Taillight System Wiring Diagram (2 Of 5)

G09123218

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

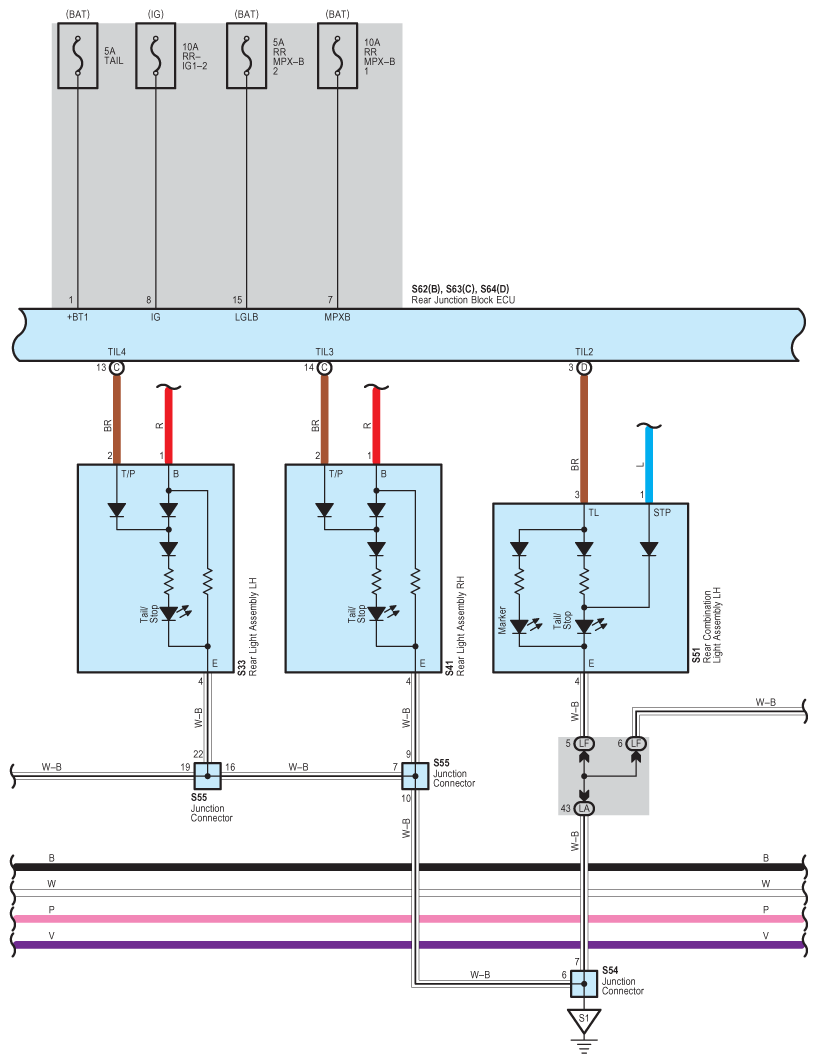

Fig 3: Taillight System Wiring Diagram (3 Of 5)

G09123219

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

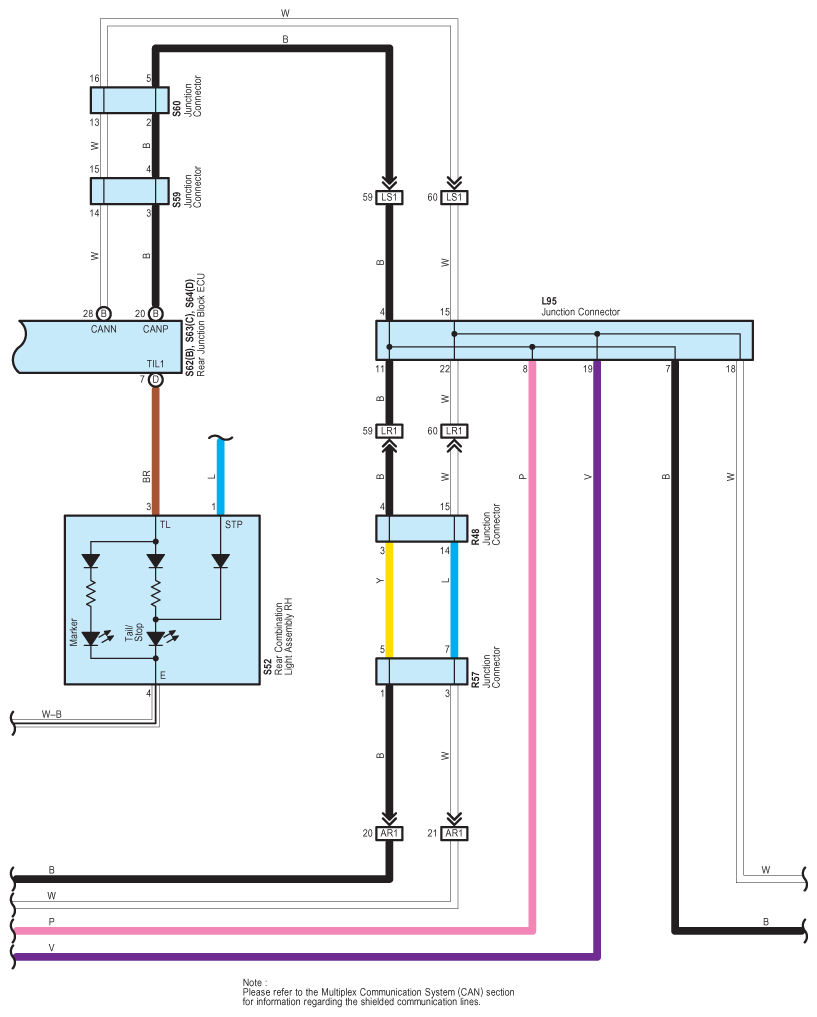

Fig 4: Taillight System Wiring Diagram (4 Of 5)

G09123220

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

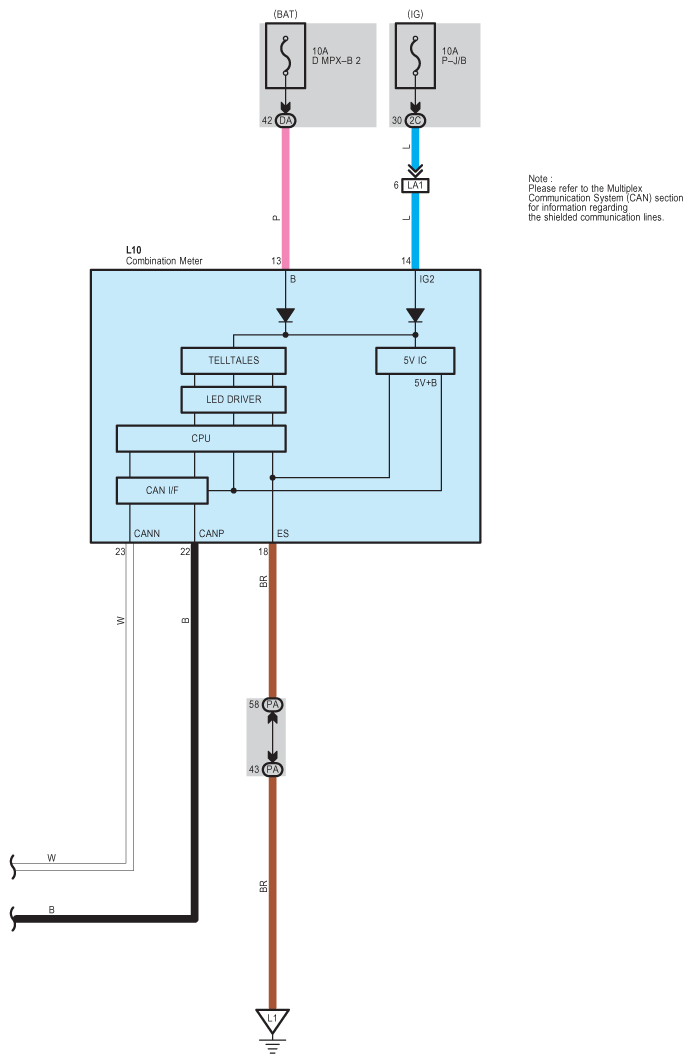

Fig 5: Taillight System Wiring Diagram (5 Of 5)

G09123221

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
