VGRS System: Notes — 2013 Lexus LS 600hL Service Manual ~ FixVault

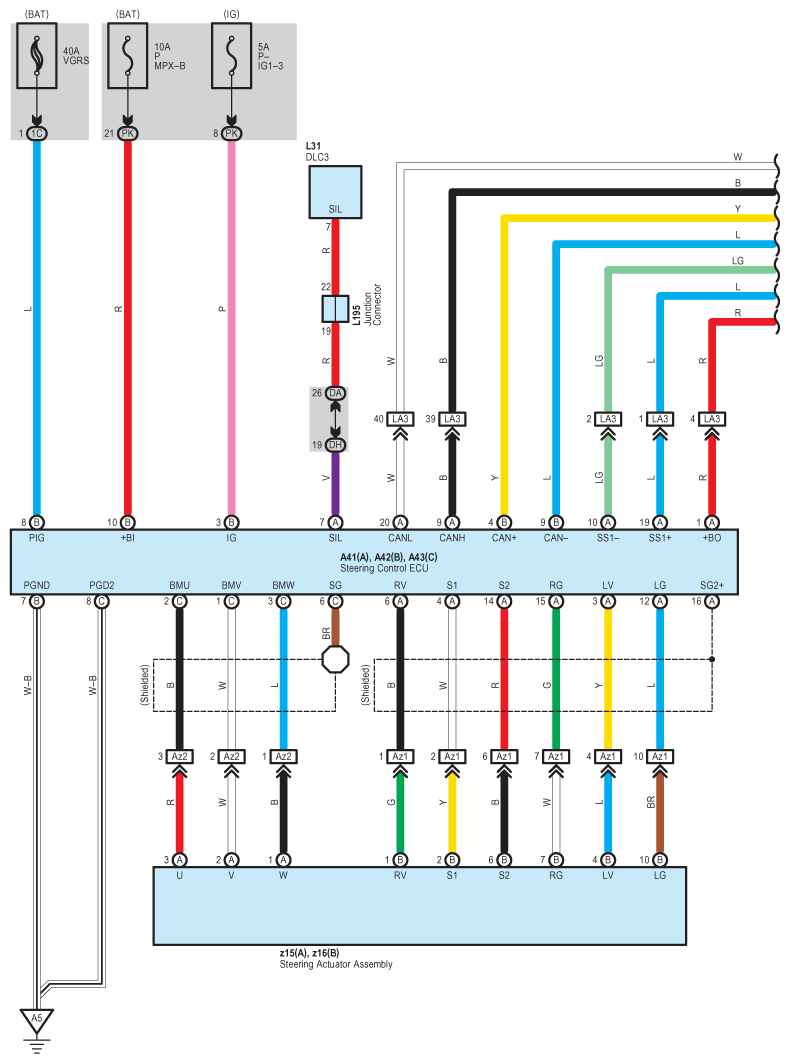

Fig 1: VGRS System Wiring Diagram (1 Of 5)

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

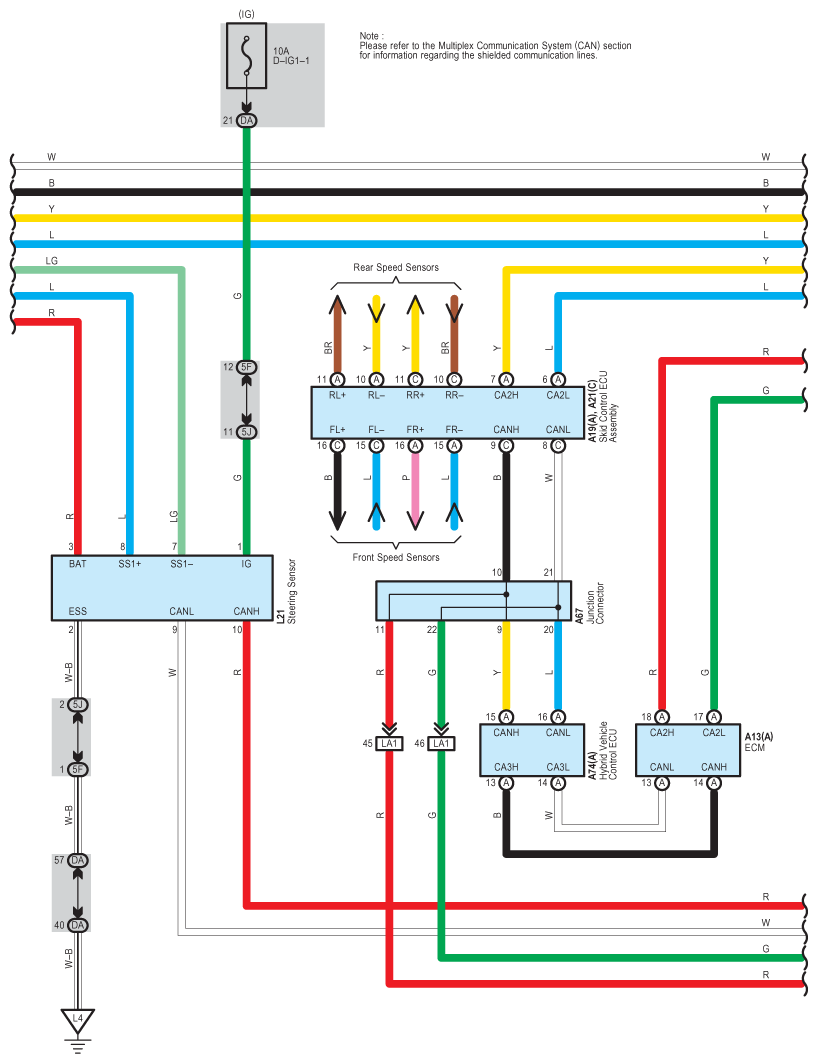

Fig 2: VGRS System Wiring Diagram (2 Of 5)

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

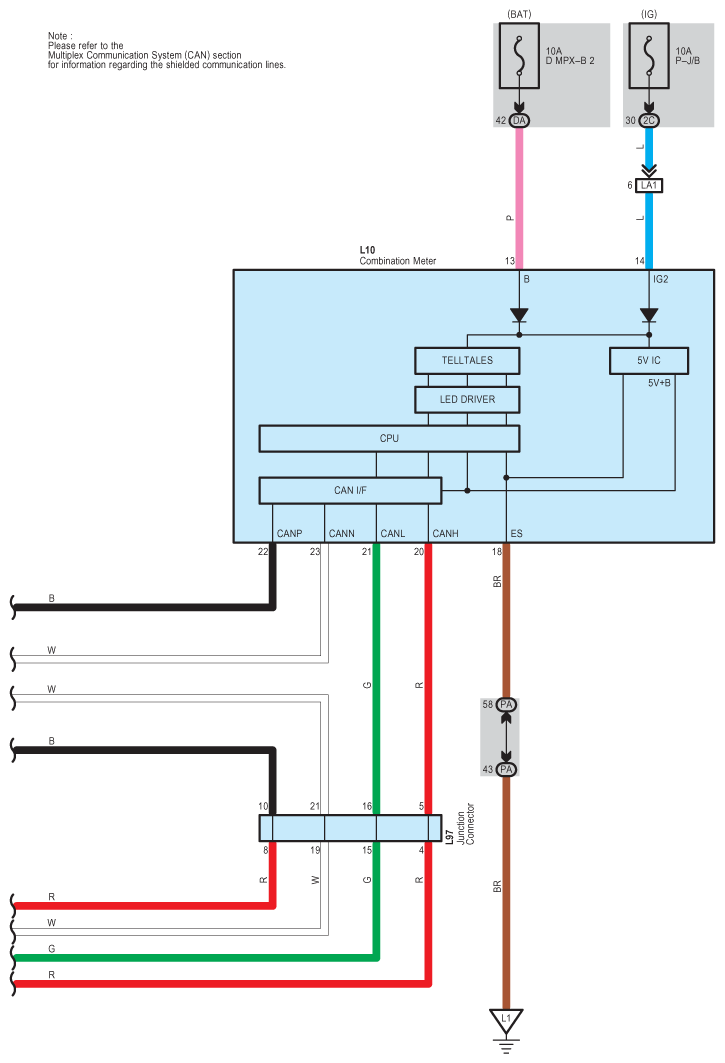

Fig 3: VGRS System Wiring Diagram (3 Of 5)

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

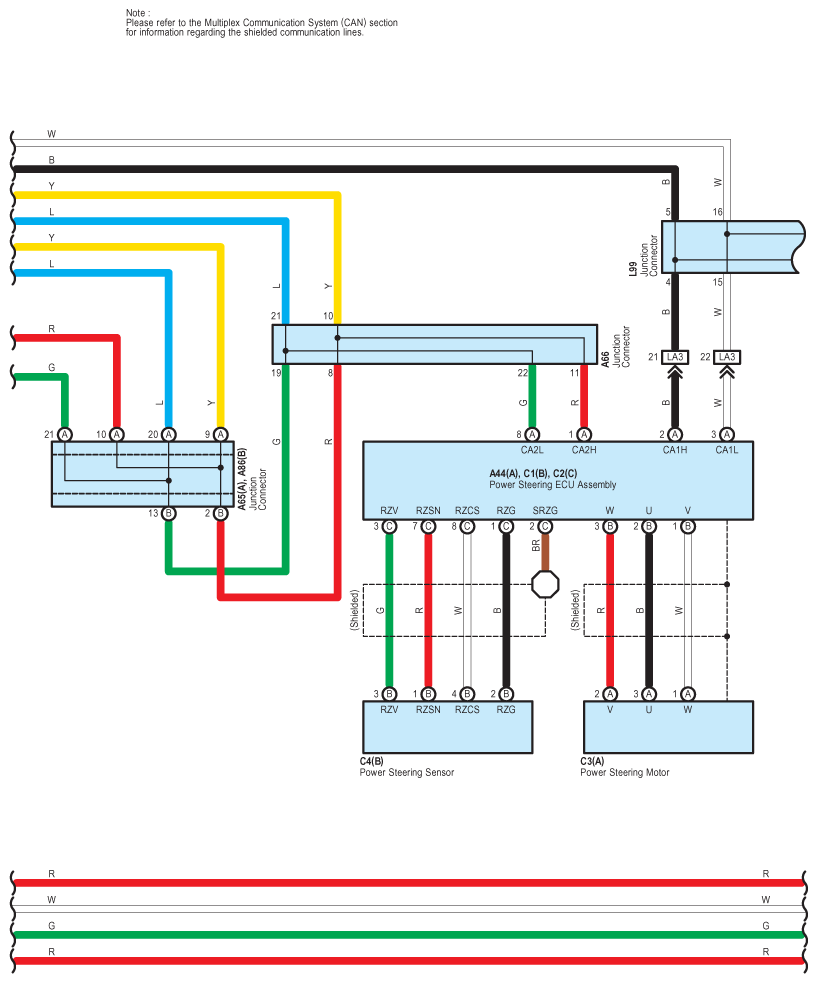

Fig 4: VGRS System Wiring Diagram (4 Of 5)

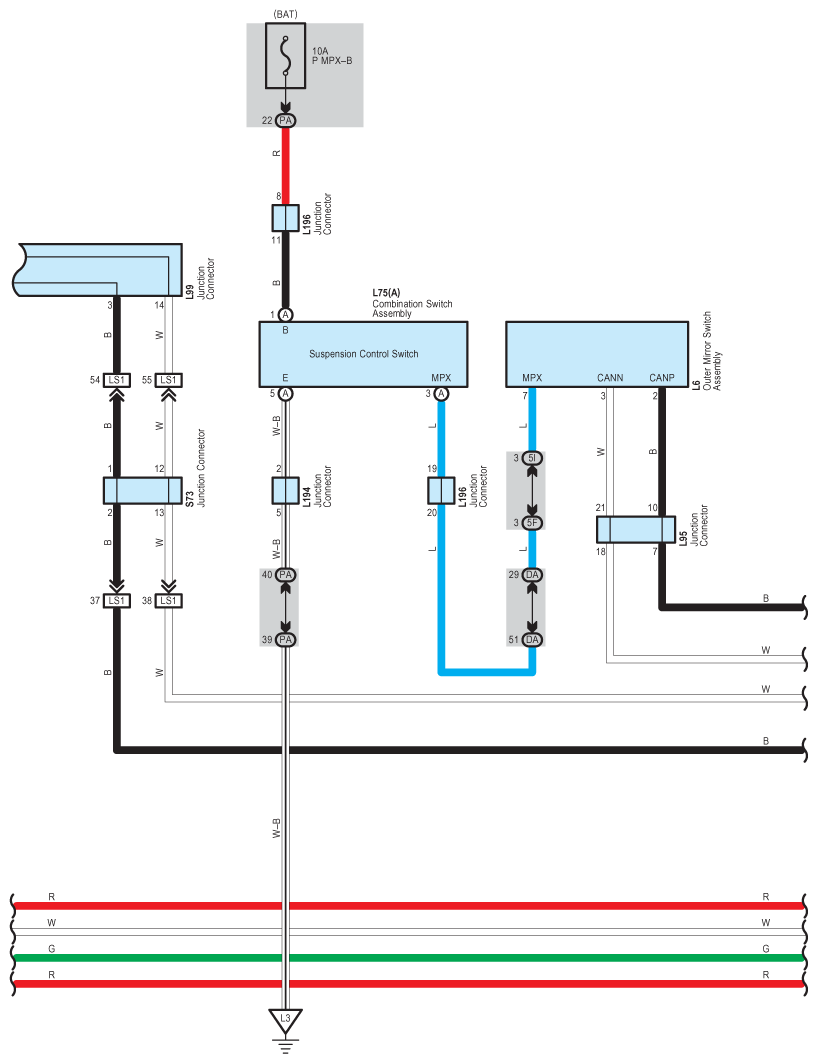

Fig 5: VGRS System Wiring Diagram (5 Of 5)
