Components [09/2012 - ]: Illustration

Fig 1: Identifying ECM Replacement Components With Torque Specifications (1 Of 2)
GTY400603Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

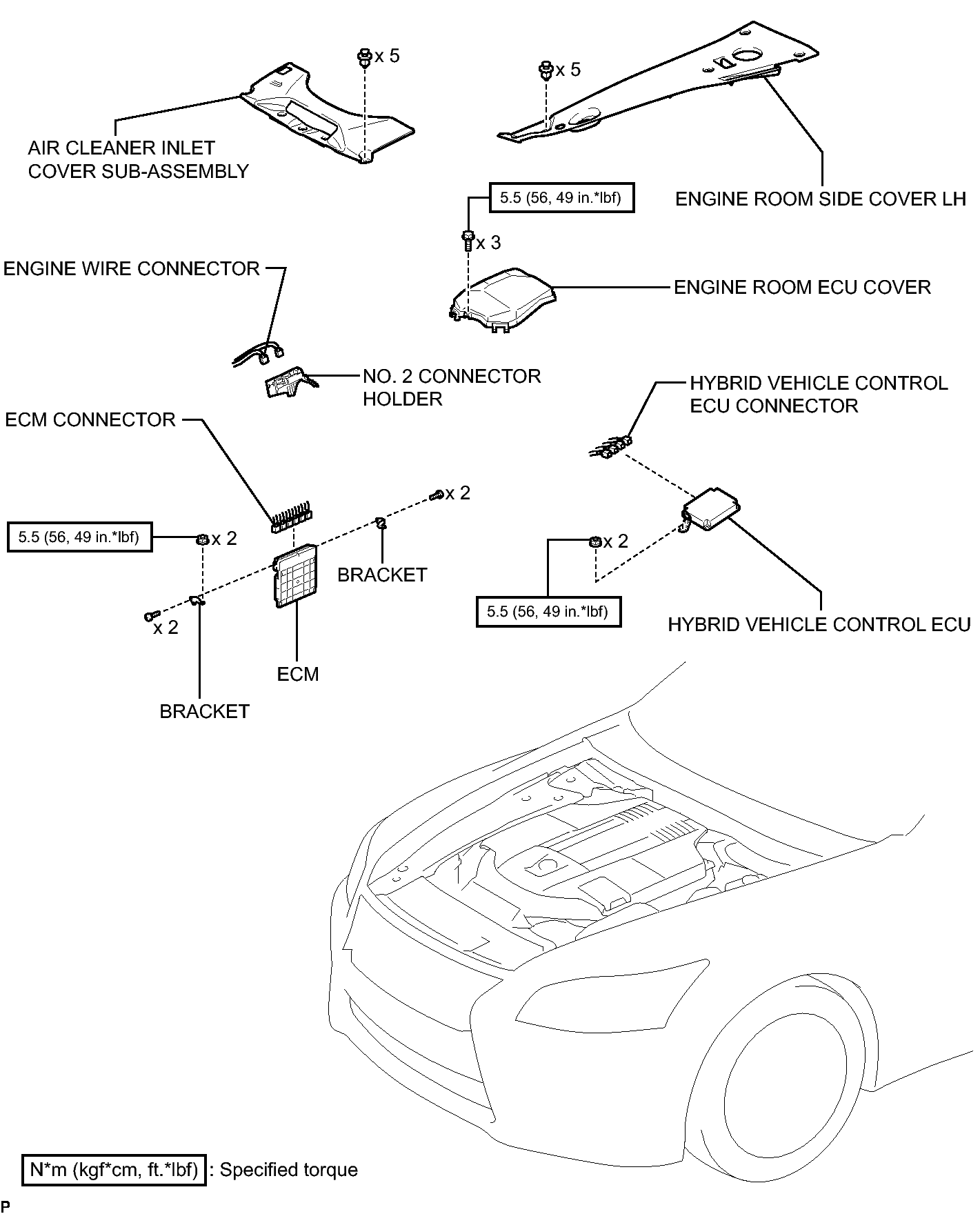

Fig 1: Identifying ECM Replacement Components With Torque Specifications (2 Of 2)
GTY415059Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
