Components [09/2012 - ]: Illustration

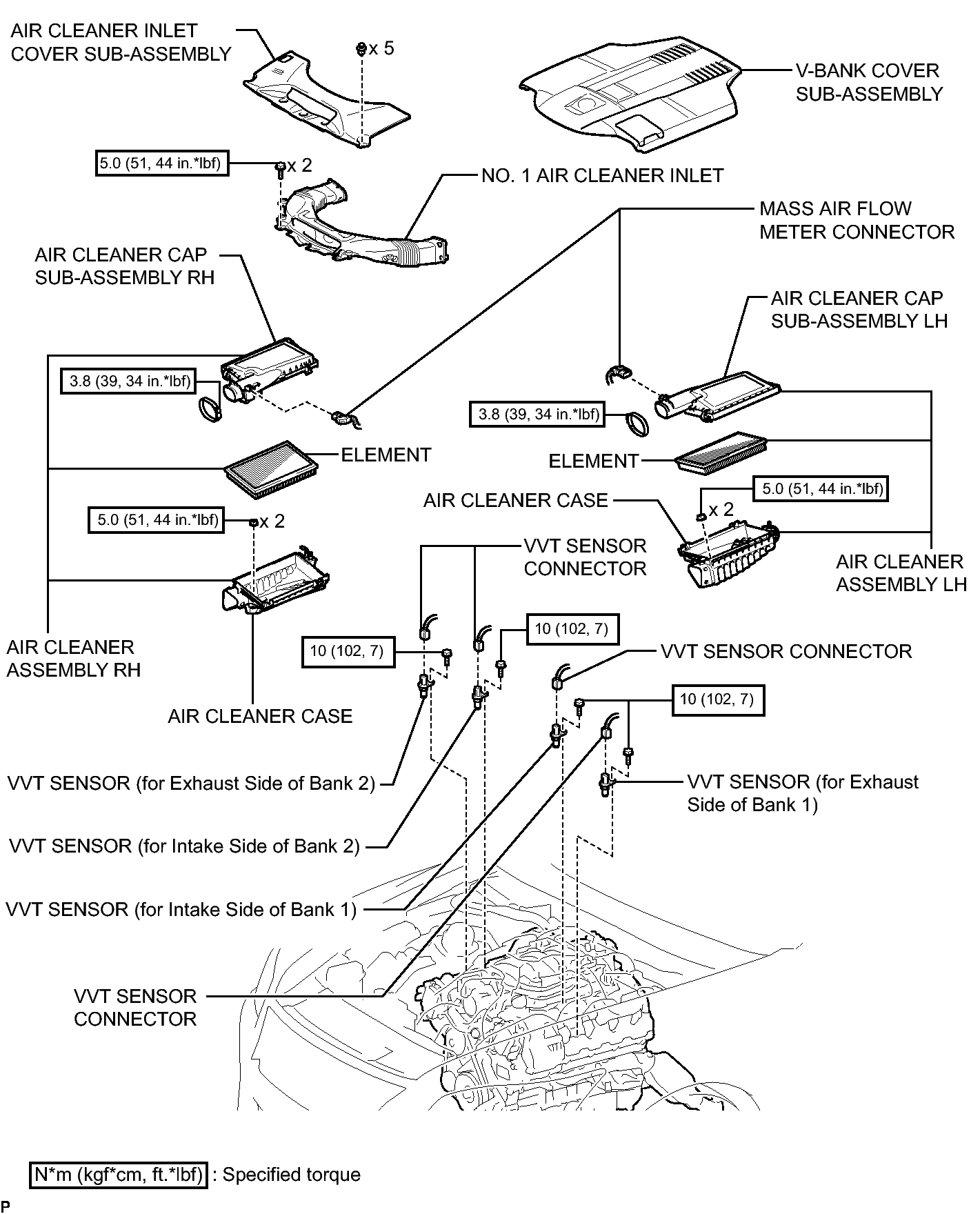

Fig 1: Identifying VVT Sensor Replacement Components With Torque Specifications
GTY399732Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
