Driver Side Power Window does not Operate with Power Window Master Switch: Wiring Diagram

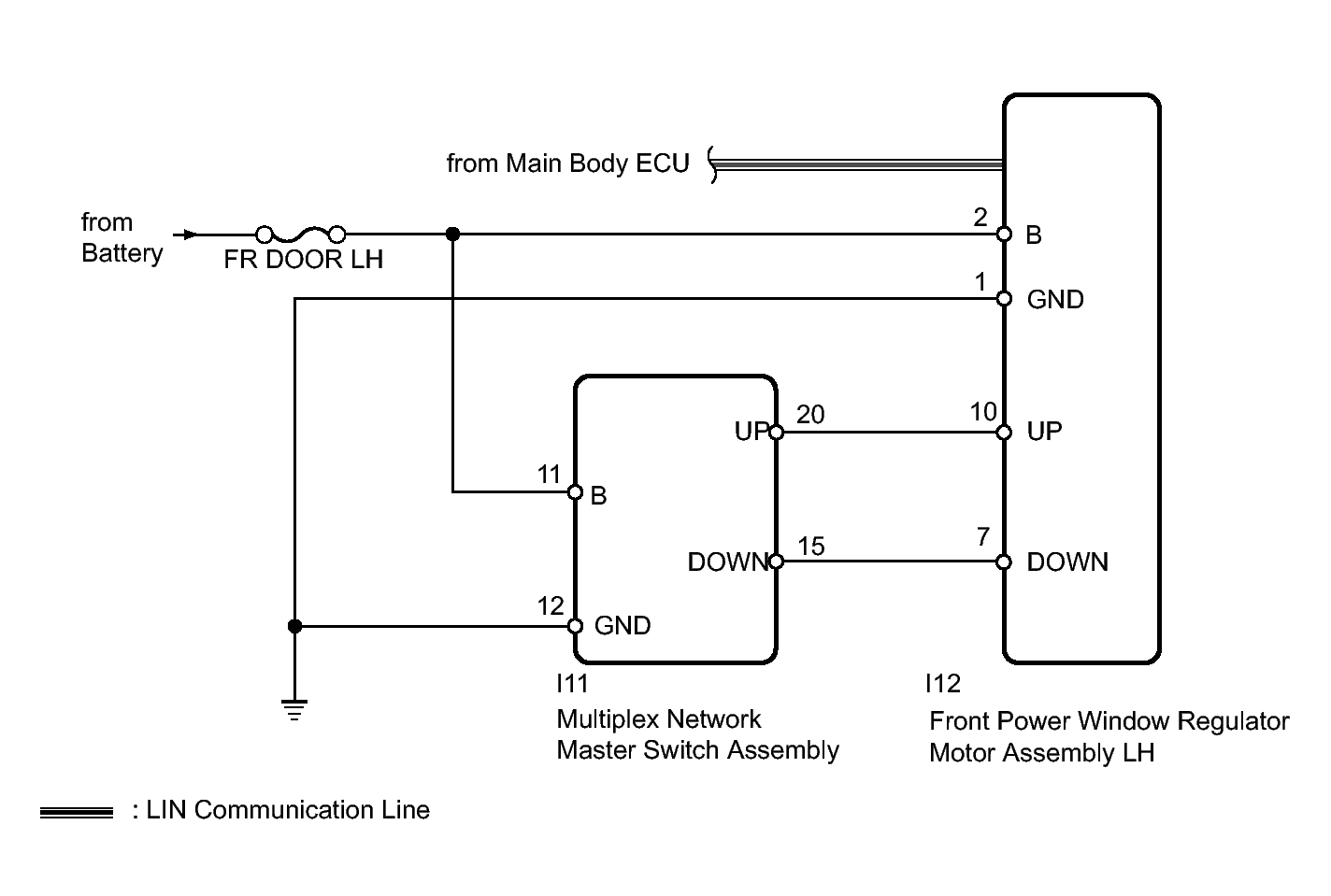

Fig 1: Front Power Window Regulator Motor And Master Switch - Wiring Diagram
GTY125970Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
