In-Line Connector End View (EA2)

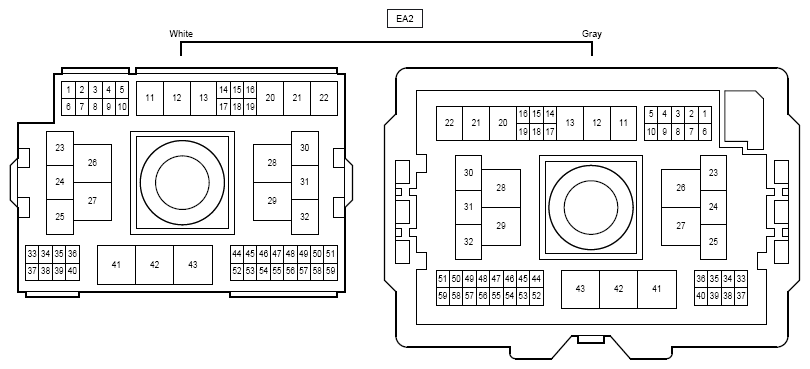

Fig 1: In-Line Connector End View (EA2)
G10274608Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
