Garage Door Opener
›
Notes
Garage Door Opener: Notes

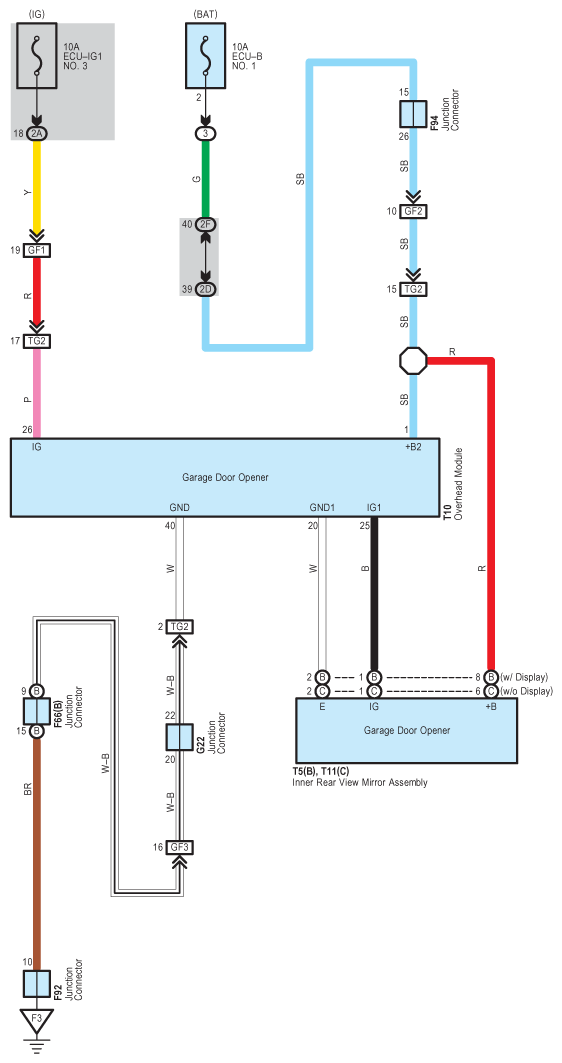

Fig 1: Garage Door Opener System Wiring Diagram
Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
