Components [03/2012 - 07/2012]: Illustration

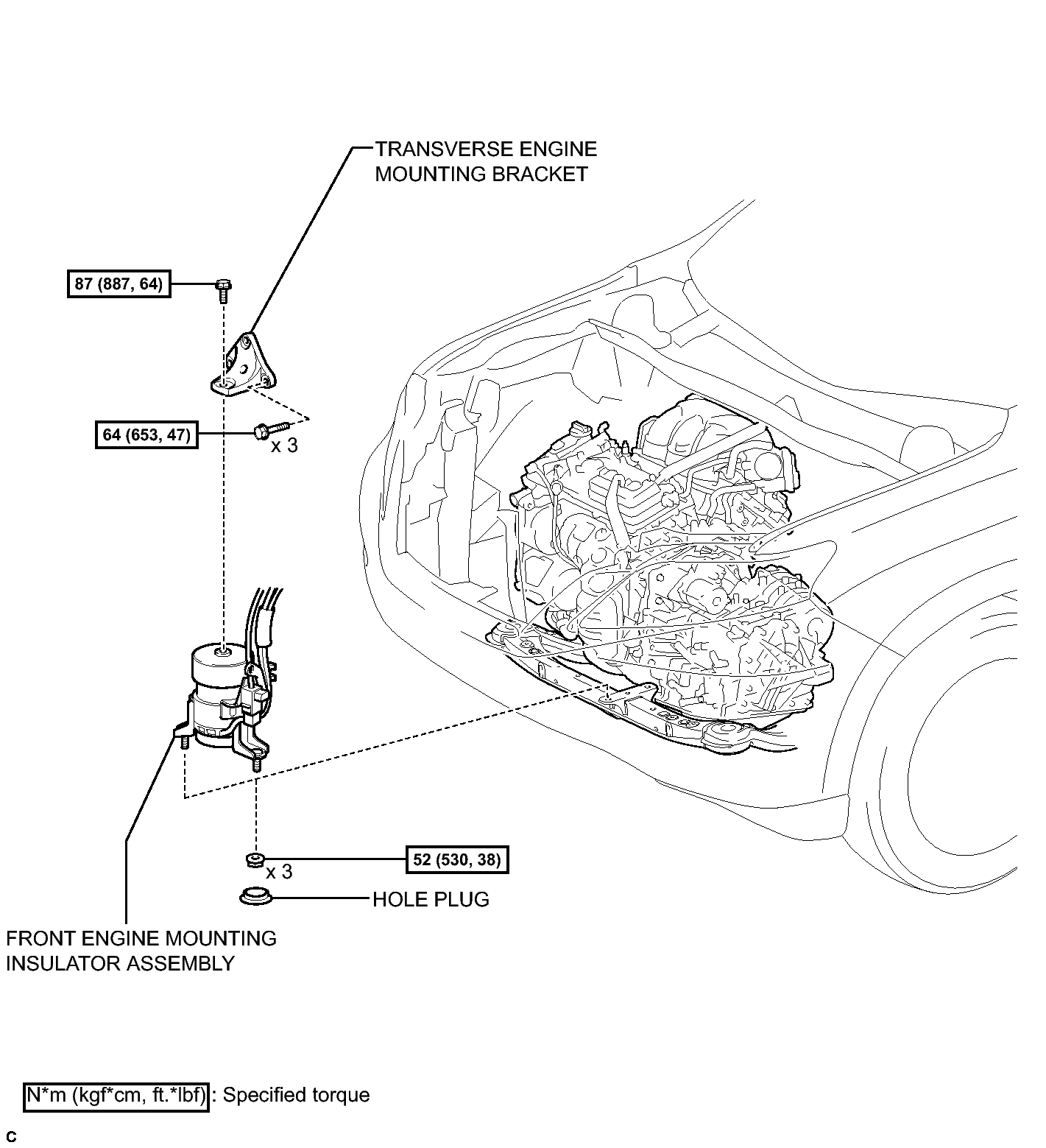

Fig 1: Identifying Active Control Engine Mount Replacement Components With Torque Specifications (1 Of 2)

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

Fig 1: Identifying Active Control Engine Mount Replacement Components With Torque Specifications (2 Of 2)

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
