LEXUS ENFORM or Safety Connect: Notes

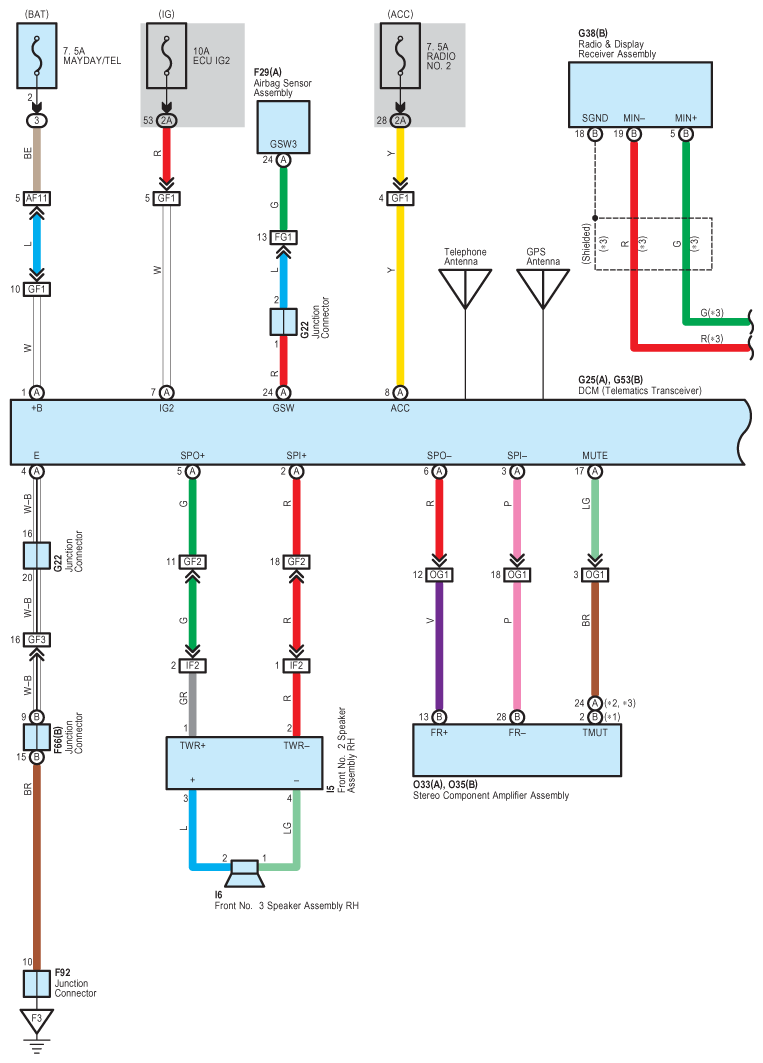

Fig 1: Lexus Enform Or Safety Connect System Wiring Diagram (1 Of 5)
G09126893Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

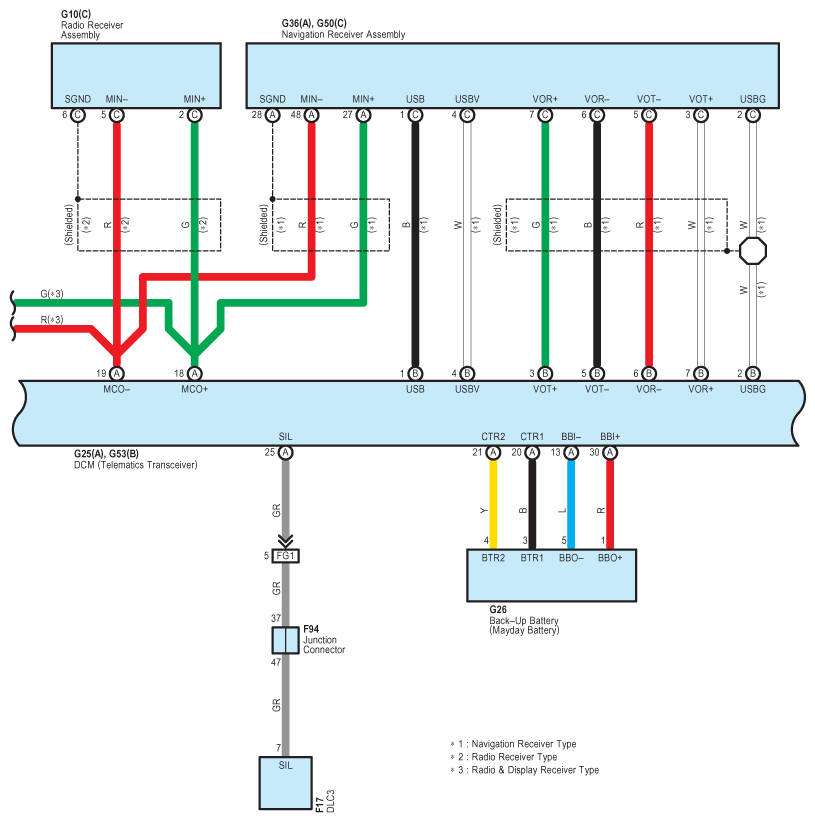

Fig 2: Lexus Enform Or Safety Connect System Wiring Diagram (2 Of 5)
G09126894Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

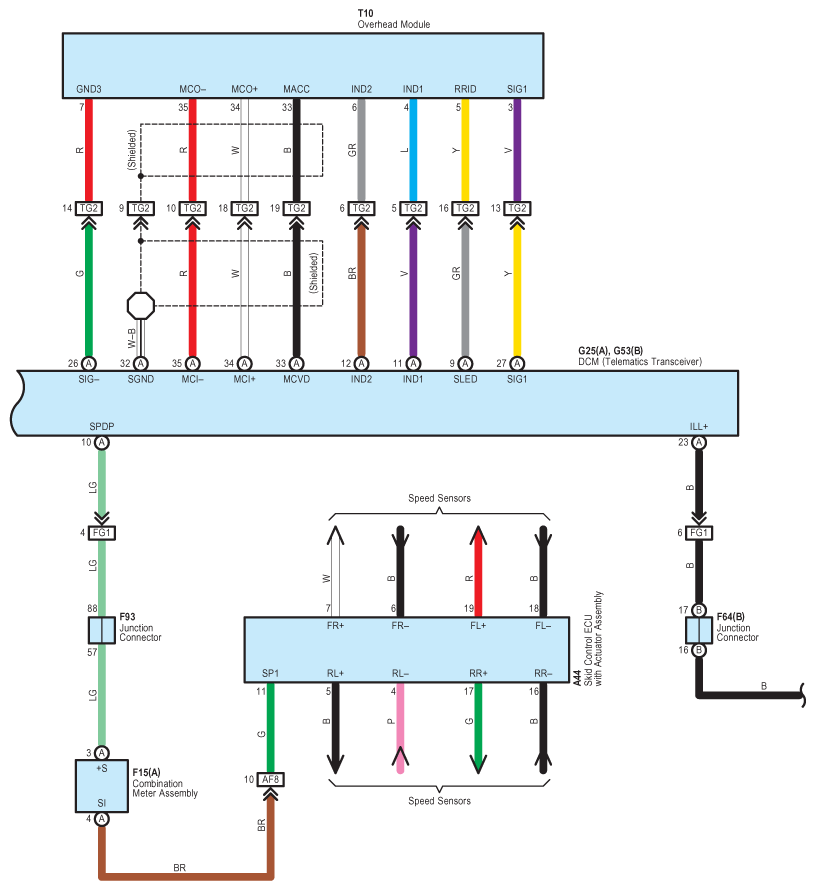

Fig 3: Lexus Enform Or Safety Connect System Wiring Diagram (3 Of 5)
G09126895Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

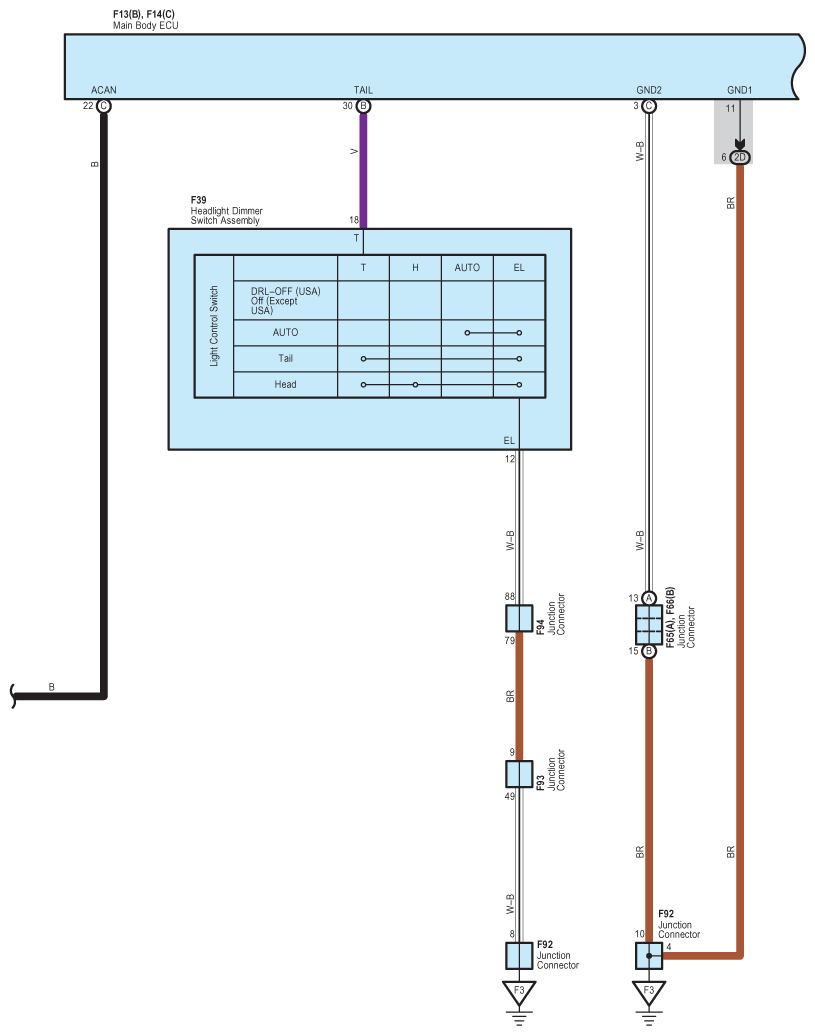

Fig 4: Lexus Enform Or Safety Connect System Wiring Diagram (4 Of 5)
G09126896Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

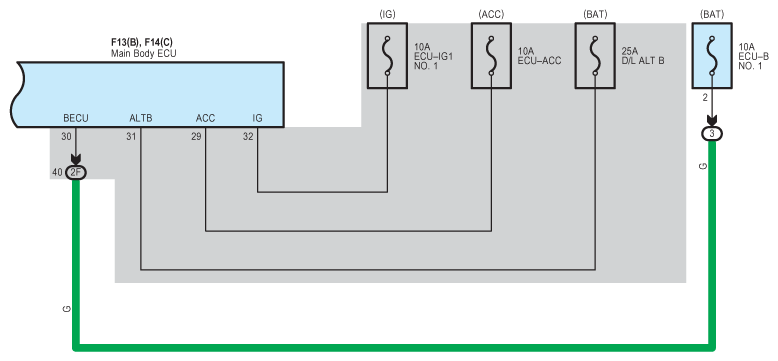

Fig 5: Lexus Enform Or Safety Connect System Wiring Diagram (5 Of 5)
G09126897Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
