Engine Coolant Temperature Sensor
›
Components [08/2013 - ]
›
Illustration
Components [08/2013 - ]: Illustration

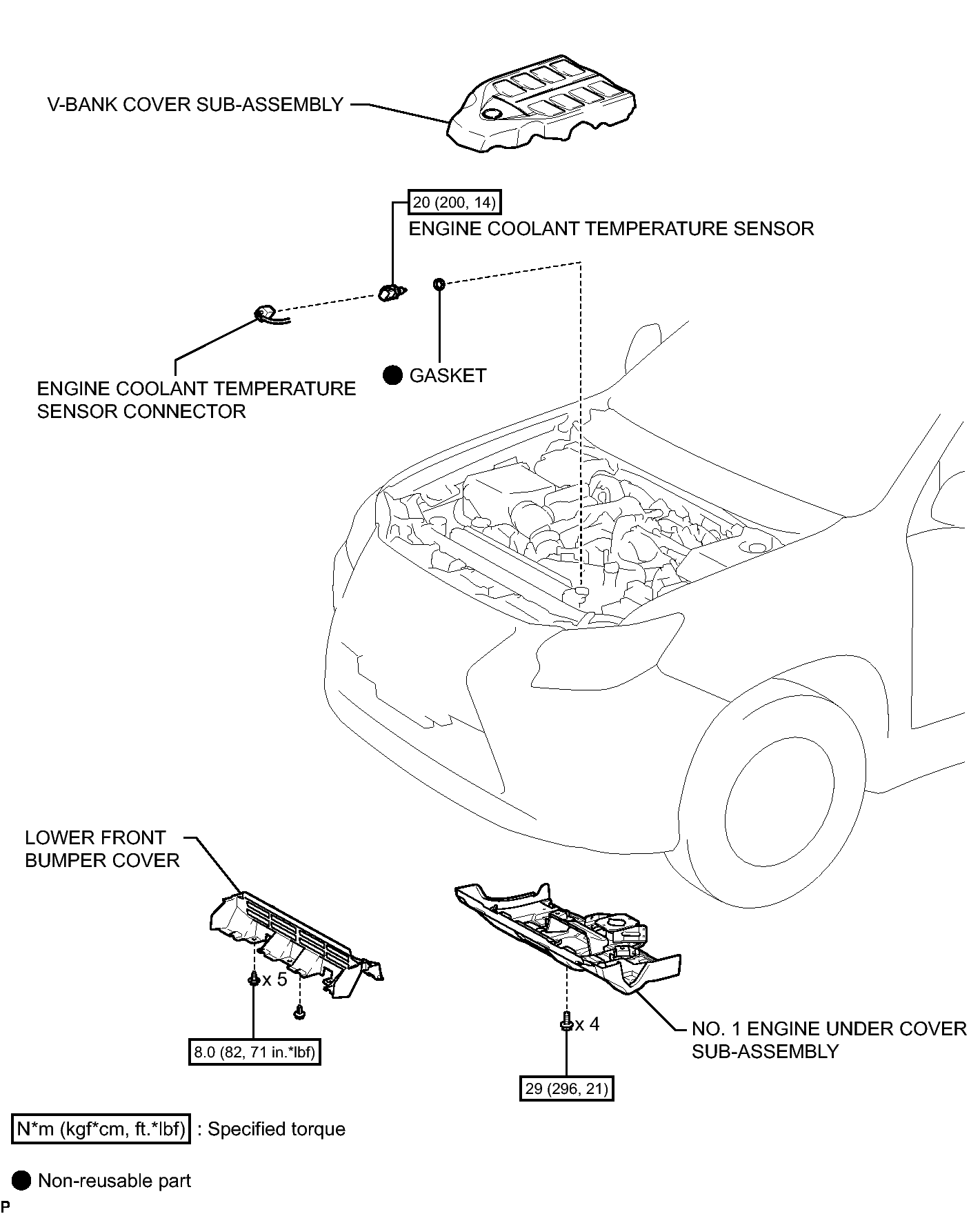

Fig 1: Identifying Engine Coolant Temperature Sensor Replacement Components With Torque Specifications
Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
