Installation [04/2013 - 10/2016]: Procedure

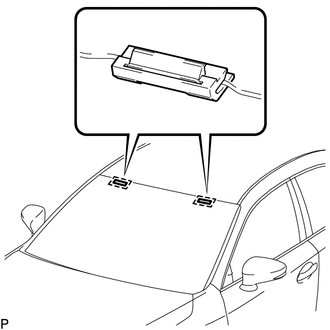

- INSTALL NO. 1 WINDSHIELD GLASS STOPPER (for 2-piece Type)
- INSTALL NO. 2 WINDSHIELD GLASS STOPPER (for 2-piece Type)
- Using a brush or sponge, coat the application area of 2 new No. 2 windshield glass stoppers with glass primer.NOTE:
- Do not apply too much glass primer.
- Allow the glass primer to dry for 3 minutes or more.
- Throw away any leftover glass primer.
HINT:
If an area other than specified is coated by accident, wipe off the glass primer with a clean piece of cloth before it dries.
- Install the 2 new No. 2 windshield glass stoppers onto the windshield glass as shown in the illustration.

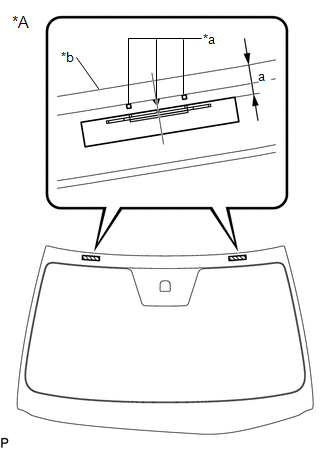

*A Back Side *a Ceramic Notch *b Windshield Glass Edge Side Standard Dimension
Area Dimension a 15.5 mm (0.610 in.) HINT:
Only 2-piece type windshield glass stoppers are provided as supply parts. Use the 2-piece type stoppers as replacements even if 1-piece type stoppers were originally installed.
- Using a brush or sponge, coat the application area of 2 new No. 2 windshield glass stoppers with glass primer.
- INSTALL WINDSHIELD OUTSIDE MOULDING
- Using a brush or sponge, coat the application area of a new windshield outside moulding with glass primer.NOTE:
- Do not apply too much glass primer.
- Allow the glass primer to dry for 3 minutes or more.
- Throw away any leftover glass primer.
HINT:
If an area other than specified is coated by accident, wipe off the glass primer with a clean piece of cloth before it dries.
- Install the new windshield outside moulding onto the windshield glass as shown in the illustration.

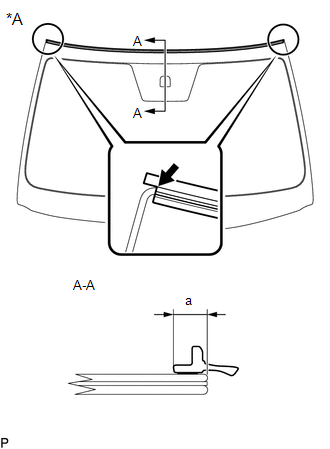

*A Back Side Edge Of Curved Surface Standard Dimension
Area Dimension a 7.15 mm (0.282 in.)
- Using a brush or sponge, coat the application area of a new windshield outside moulding with glass primer.
- INSTALL NO. 1 INSTRUMENT PANEL CUSHION
- Using a brush or sponge, coat the application area of a new No. 1 instrument panel cushion with glass primer.NOTE:
- Do not apply too much glass primer.
- Allow the glass primer to dry for 3 minutes or more.
- Throw away any leftover glass primer.
HINT:
If an area other than specified is coated by accident, wipe off the glass primer with a clean piece of cloth before it dries.
- Install the new No. 1 instrument panel cushion onto the windshield glass as shown in the illustration.

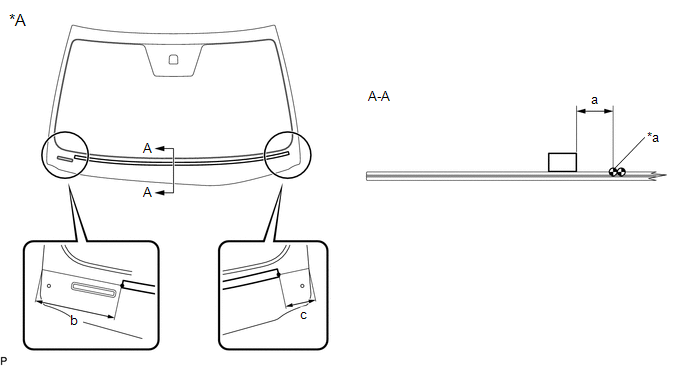

*A Back Side - - *a Ceramic Notch - - Standard Dimension
Area Dimension a 19.7 mm (0.776 in.) b 158.4 mm (6.24 in.) c 58.4 mm (2.30 in.)
- Using a brush or sponge, coat the application area of a new No. 1 instrument panel cushion with glass primer.
- INSTALL FRONT WINDOW INNER MOULDING COVER LH
- Using a brush or sponge, coat the application area of new front window inner moulding cover LH with glass primer.NOTE:
- Do not apply too much glass primer.
- Allow the glass primer to dry for 3 minutes or more.
- Throw away any leftover glass primer.
HINT:
If an area other than specified is coated by accident, wipe off the glass primer with a clean piece of cloth before it dries.
- Install the new front window inner moulding cover LH onto the windshield glass as shown in the illustration.

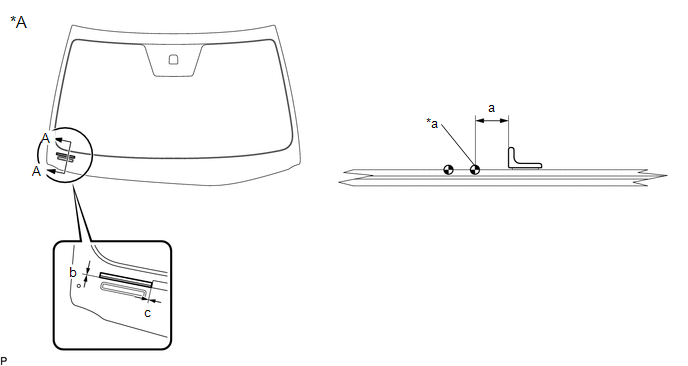

*A Back Side - - *a Ceramic Notch - - Standard Dimension
Area Dimension a 7.1 mm (0.280 in.) b 0 mm (0 in.) c 0 mm (0 in.)
- Using a brush or sponge, coat the application area of new front window inner moulding cover LH with glass primer.
- INSTALL WINDSHIELD GLASS ADHESIVE DAM
- Cut the windshield glass adhesive dam so that it is the appropriate size as shown in the illustration.
*a Cut Standard Dimension
Area Dimension a 2740 mm (108 in.) - Using a brush or sponge, coat the application area of a new windshield glass adhesive dam with glass primer.NOTE:
- Do not apply too much glass primer.
- Allow the glass primer to dry for 3 minutes or more.
- Throw away any leftover glass primer.
HINT:
If an area other than specified is coated by accident, wipe off the glass primer with a clean piece of cloth before it dries.
- Install the windshield glass adhesive dam onto the windshield glass as shown in the illustration.

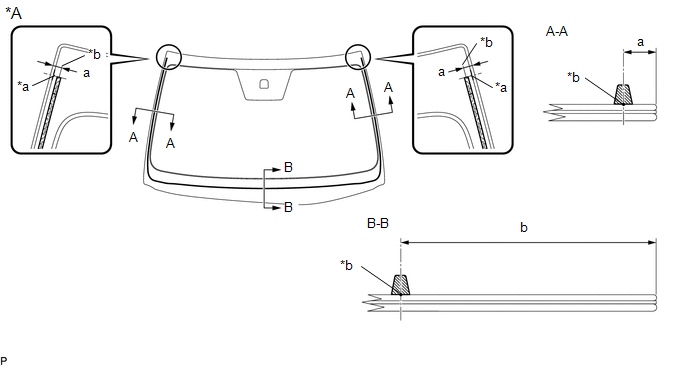

*A Back Side - - *a Windshield glass adhesive dam positioning ceramic notch *b Windshield glass adhesive dam positioning center line Glass Primer - - Standard Dimension
Area Dimension a 9.5 mm (0.374 in.) b 85.7 mm (3.37 in.)
- Cut the windshield glass adhesive dam so that it is the appropriate size as shown in the illustration.
- INSTALL WINDSHIELD GLASS SUB-ASSEMBLY
- Position the windshield glass sub-assembly.
*a Matchmark - Using suction cups, place the windshield glass sub-assembly in the correct position.
- Check that the whole contact surface of the windshield glass sub-assembly rim is perfectly even.
- Align the matchmarks on the windshield glass sub-assembly and vehicle body.NOTE:
Check that the windshield glass stoppers are attached to the vehicle body correctly.
- Remove the windshield glass sub-assembly.
- Using a brush, coat the installation surface on the vehicle body with body primer.NOTE:
- Do not coat the adhesive with body primer.
- Do not apply too much body primer.
- Allow the body primer to dry for 3 minutes or more.
- Throw away any leftover body primer.
HINT:
If an area other than specified is coated by accident, wipe off the body primer with a clean piece of cloth before it dries.
- Using a brush or sponge, coat the application area of adhesive with glass primer.

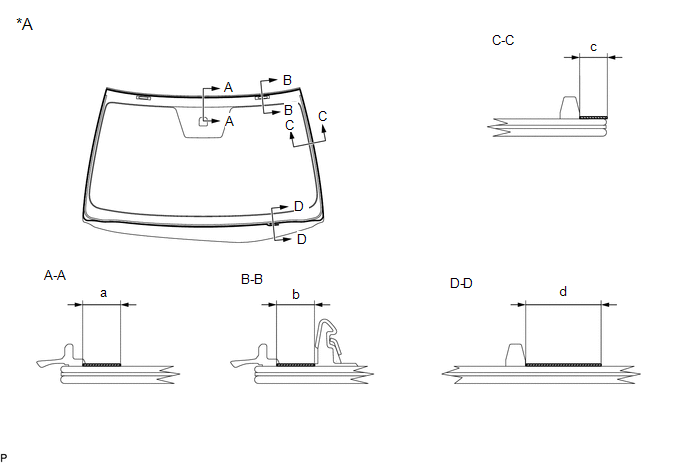

*A Back Side - - Glass Primer - - Standard Dimension
Area Dimension a 11 mm (0.433 in.) b 7.1 mm (0.280 in.) c 6.0 mm (0.236 in.) d 19 mm (0.748 in.) NOTE:- Do not apply too much glass primer.
- Allow the glass primer to dry for 3 minutes or more.
- Throw away any leftover glass primer.
HINT:
- Apply glass primer onto the ceramic notches.
- If an area other than specified is coated by accident, wipe off the glass primer with a clean piece of cloth before it dries.
- Apply adhesive to the windshield glass sub-assembly.
Adhesive
Toyota Genuine Windshield Glass Adhesive or equivalent
- Cut off the tip of the cartridge nozzle as shown in the illustration.
*1 Sealer Gun *2 Nozzle Standard Dimension
Area Dimension a 8.0 mm (0.315 in.) or more b 12.0 mm (0.472 in.) or more HINT:
After cutting off the tip, use all adhesive within the time described in the table below.
Usage Time Frame
Temperature Usage Time Frame 35°C (95°F) 15 minutes 20°C (68°F) 1 hour and 40 minutes 5°C (41°F) 8 hours - Load the sealer gun with the cartridge.
- Apply adhesive to the windshield glass sub-assembly as shown in the illustration.

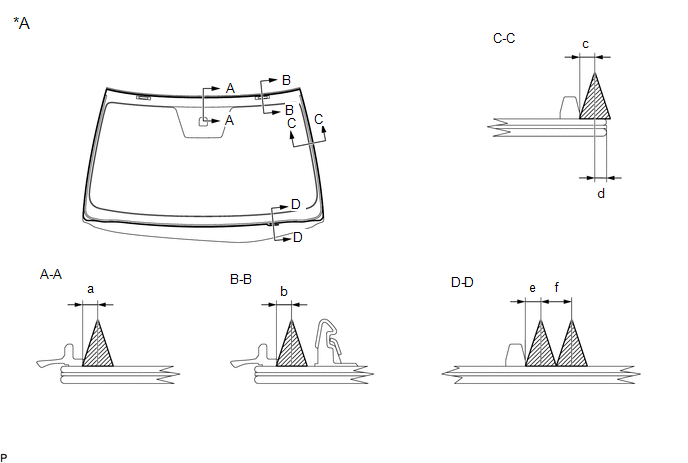

*A Back Side - - Adhesive - - Standard Dimension
Area Dimension a 4.0 mm (0.158 in.) b 4.0 mm (0.158 in.) c 4.0 mm (0.158 in.) d 3.0 mm (0.118 in.) or more. e 4.0 mm (0.158 in.) f 8.0 mm (0.315 in.) HINT:
Apply adhesive onto the ceramic notches.
- Cut off the tip of the cartridge nozzle as shown in the illustration.
- Install the windshield glass sub-assembly.

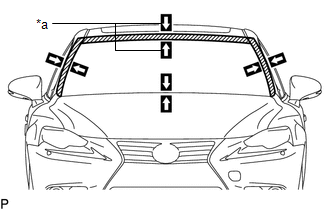

*a Matchmark - Using suction cups, position the windshield glass sub-assembly so that the matchmarks are aligned, and press it in gently along the rim.NOTE:
- Check that the windshield glass stoppers are attached to the vehicle body correctly.
- Check the clearance between the vehicle body and windshield glass sub-assembly.
- Lightly press the front surface of the windshield glass sub-assembly to ensure that the windshield glass is securely fit to the vehicle body.
HINT:
Press the glass with a force of 98 N (10 kgf, 22.0 lbf) or more.
- Using a scraper, remove any excess or protruding adhesive.
- Hold the windshield glass using protective tape until the applied adhesive becomes hard.NOTE:
Do not drive the vehicle for the time described in the table below.
Minimum Time
Temperature Minimum Time prior to Driving Vehicle 35°C (95°F) 1 hour and 30 minutes 20°C (68°F) 5 hours 5°C (41°F) 24 hours
- Using suction cups, position the windshield glass sub-assembly so that the matchmarks are aligned, and press it in gently along the rim.
- w/ Windshield Deicer System:
- Connect the connector.
- Position the windshield glass sub-assembly.
- INSPECT FOR LEAK
- After the adhesive has hardened, apply water from the outside of the vehicle. Check that no water leaks into the cabin.
- If water leaks into the cabin, allow the water to dry and add adhesive.
- Remove the protective tape.
- INSTALL ROOF HEADLINING ASSEMBLY
Refer to INSTALLATION [04/2013 - 08/2015] , or refer to INSTALLATION [08/2015 - 10/2016]
- INSTALL LANE DEPARTURE WARNING CAMERA (w/ Lane Departure Alert System)
Refer to INSTALLATION [04/2013 - 10/2016]
- INSTALL RAIN SENSOR (w/ Rain Sensor)
Refer to INSTALLATION [04/2013 - 10/2016]
- INSTALL INNER REAR VIEW MIRROR ASSEMBLY
Refer to INSTALLATION [04/2013 - 10/2016]
- INSTALL COWL TOP VENTILATOR LOUVER SUB-ASSEMBLY
Refer to PROCEDURE - Step 3
- INSTALL FRONT WIPER ARM AND BLADE ASSEMBLY LH
Refer to PROCEDURE - Step 4
- INSTALL FRONT WIPER ARM AND BLADE ASSEMBLY RH
Refer to PROCEDURE - Step 5
- INSTALL FRONT WIPER ARM HEAD CAP
Refer to PROCEDURE - Step 6
- INSTALL WINDSHIELD OUTSIDE MOULDING LH
Refer to PROCEDURE - Step 3
- INSTALL WINDSHIELD OUTSIDE MOULDING RH
HINT:
Use the same procedure as for the LH side.
