Components [04/2013 - 08/2015]

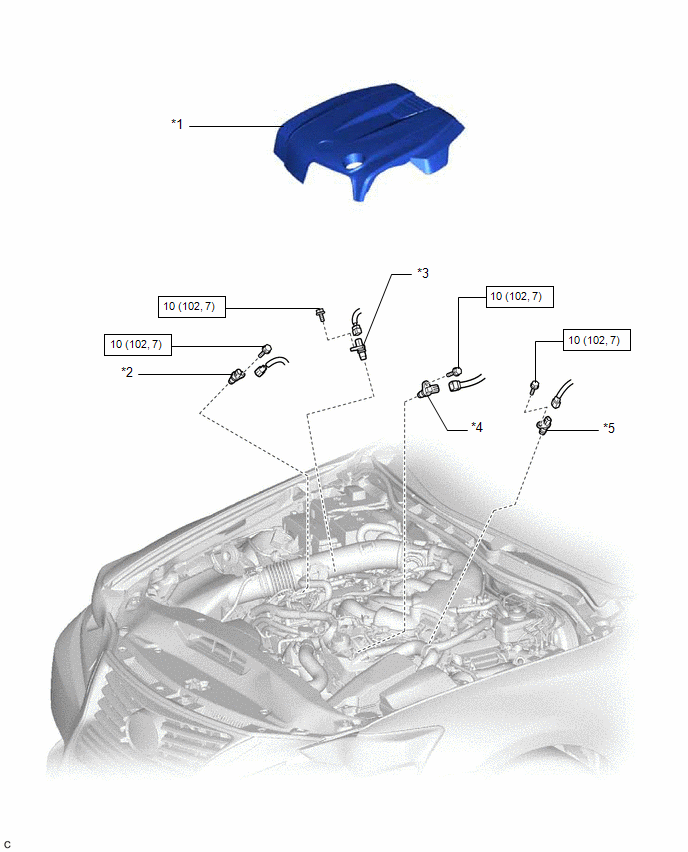

Fig 1: Camshaft Position Sensor Replacement Components With Torque Specifications [04/2013 - 08/2015]

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

*1	V-BANK COVER SUB-ASSEMBLY	*2	VVT SENSOR (for Intake Side of Bank 1)
*3	VVT SENSOR (for Exhaust Side of Bank 1)	*4	VVT SENSOR (for Intake Side of Bank 2)
*5	VVT SENSOR (for Exhaust Side of Bank 2)	-	-
	N.m (kgf/cm, ft.lbf): Specified torque	-	-
