Components [04/2013 - 08/2015]

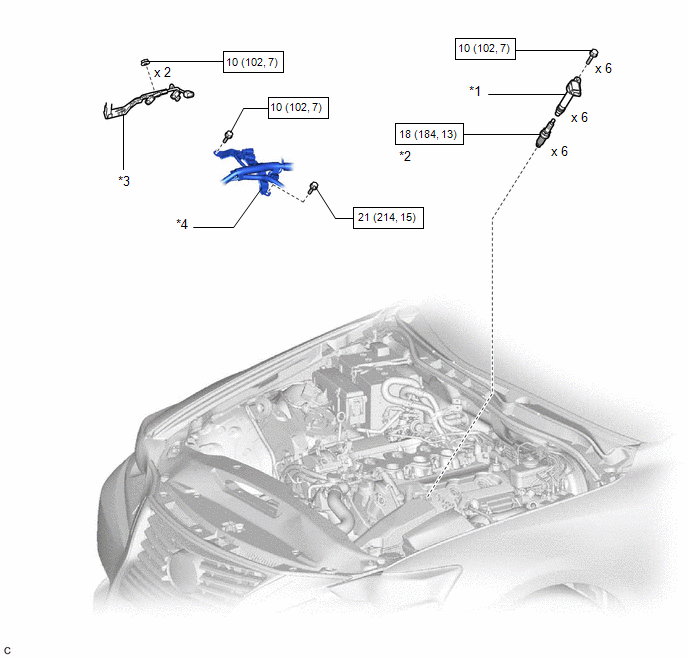

Fig 1: Ignition Coil And Spark Plug Replacement Components With Torque Specifications [04/2013 - 08/2015]

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

*1	IGNITION COIL ASSEMBLY	*2	SPARK PLUG
*3	WIRE HARNESS	*4	IGNITION COIL COVER BRACKET
	N.m (kgf/cm, ft.lbf): Specified torque	-	-
