Components [04/2013 - 08/2015]

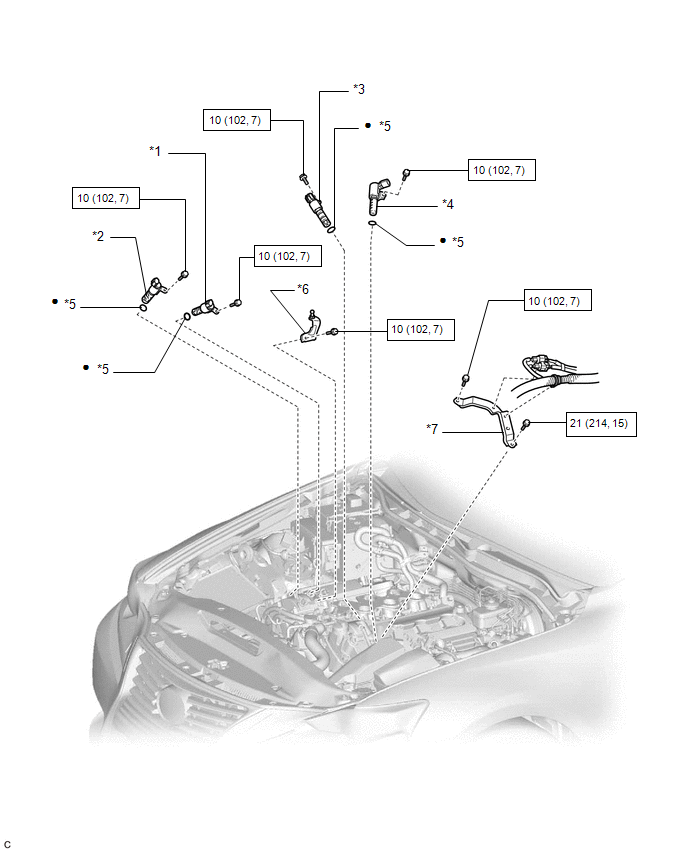

Fig 1: Camshaft Oil Control Valve Replacement Components With Torque Specifications [04/2013 - 08/2015]

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

*1	CAMSHAFT TIMING OIL CONTROL VALVE ASSEMBLY (for Intake Side of Bank 1)	*2	CAMSHAFT TIMING OIL CONTROL VALVE ASSEMBLY (for Exhaust Side of Bank 1)
*3	CAMSHAFT TIMING OIL CONTROL VALVE ASSEMBLY (for Intake Side of Bank 2)	*4	CAMSHAFT TIMING OIL CONTROL VALVE ASSEMBLY (for Exhaust Side of Bank 2)
*5	O-RING	*6	V-BANK COVER BRACKET SUB-ASSEMBLY
*7	IGNITION COIL COVER BRACKET	-	-
	N.m (kgf/cm, ft.lbf): Specified torque	•	Non-reusable part
