Components [04/2013 - 08/2015]

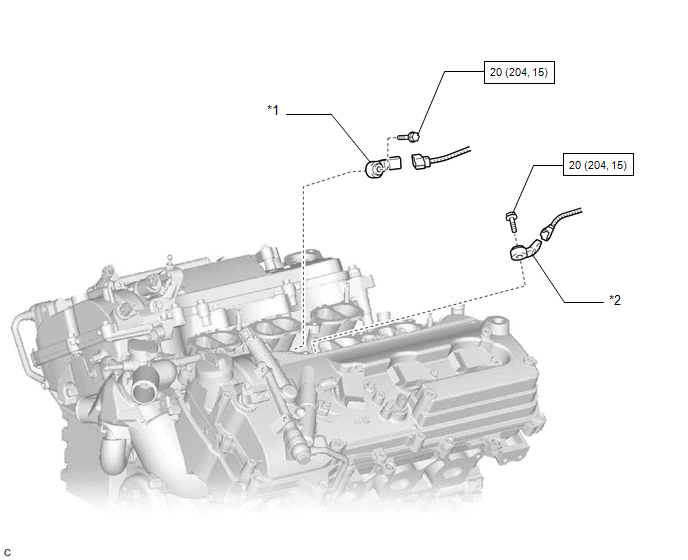

Fig 1: Knock Sensor Replacement Components With Torque Specifications [04/2013 - 08/2015]

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

*1	KNOCK CONTROL SENSOR (for Bank 1)	*2	KNOCK CONTROL SENSOR (for Bank 2)
	N.m (kgf/cm, ft.lbf): Specified torque	-	-
