Components [04/2013 - 10/2017]

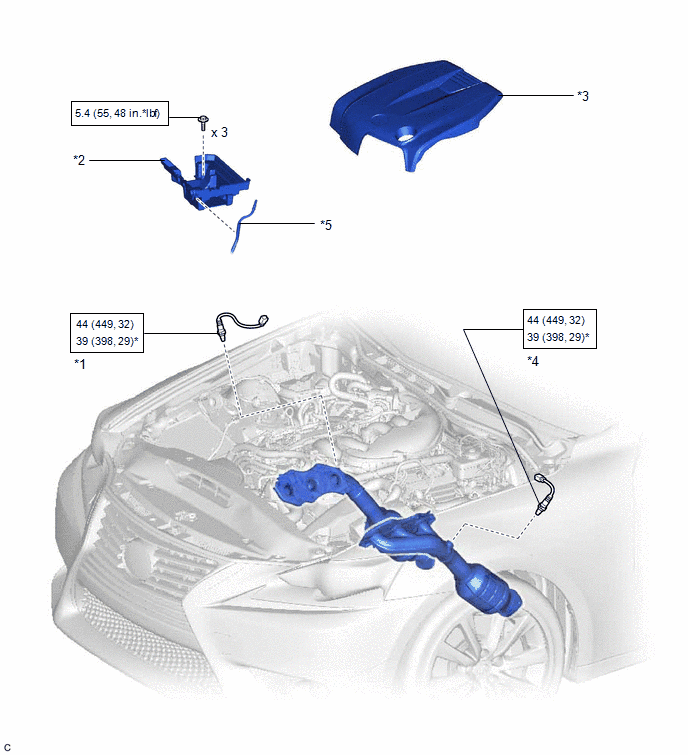

Fig 1: Air Fuel Ratio Sensor Replacement Components With Torque Specifications

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

*1	AIR FUEL RATIO SENSOR (for Bank 1)	*2	BATTERY TRAY
*3	V-BANK COVER SUB-ASSEMBLY	*4	AIR FUEL RATIO SENSOR (for Bank 2)
*5	FUEL PIPE	-	-
	N*m (kgf*cm, ft.*lbf): Specified torque	*	For use with SST
