Adjustment [08/2015 - 10/2016]: Procedure
- INSPECT TIRES
Refer to PROCEDURE - Step 1
- MEASURE VEHICLE HEIGHT
See step 2
- INSPECT CAMBER NOTE:
Inspect while the vehicle is unloaded.
- Install a camber-caster-kingpin gauge.
*a Camber-caster-kingpin Gauge - Inspect the camber.
Camber (Unloaded Vehicle)
- Camber Inclination Right-left Difference 2WD -1°35' +/- 0°45' (-1.58° +/- 0.75°) 0°45' (0.75°) or less AWD -1°38' +/- 0°45' (-1.63° +/- 0.75°) HINT:
Camber is not adjustable. If the measurement is not within the specified range, inspect the suspension parts for damage and/or wear, and replace them if necessary.
- Install a camber-caster-kingpin gauge.
- INSPECT TOE-IN NOTE:
Inspect while the vehicle is unloaded.
- Bounce the vehicle up and down at the corners to stabilize the suspension.
- Release the parking brake and move the shift lever to N.
- Push the vehicle straight ahead approximately 5 m (16.4 ft.). (Step A)
- Put tread center marks on the rearmost points of the rear wheels and measure the distance between the marks (dimension B).
*a Tread Center Mark *b Dimension B Front of the Vehicle - Slowly push the vehicle straight ahead to cause the rear wheels to rotate 180°. Use the rear tire valve as a reference point.
HINT:
Do not allow the wheels to rotate more than 180°. If the wheels rotate more than 180°, perform the procedure from step A again.
- Measure the distance between the tread center marks on the front of the rear wheels (dimension A).
*a Dimension A Front of the Vehicle Toe-in (Unloaded Vehicle)
Specified Condition C + D: 0°11' +/- 0°11' (0.18° +/- 0.18°) B - A: 2.0 +/- 2.0 mm (0.0787 +/- 0.0787 in.) HINT:
Measure "B - A" only when "C + D" cannot be measured.
If the toe-in is not within the specified range, adjust it at the toe control link sub-assembly.
- ADJUST TOE-IN

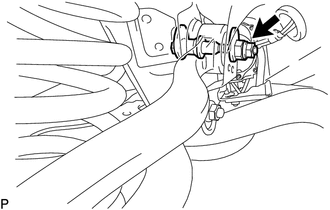

- Loosen the nut of the toe control link sub-assembly (on the rear suspension member sub-assembly side).NOTE:
Hold the rear suspension toe adjust cam sub-assembly while rotating the nut.

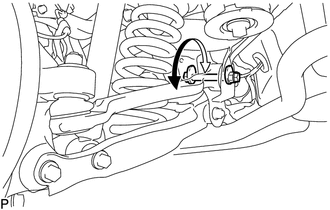

- Rotate the rear suspension toe adjust cam sub-assembly to adjust the toe-in.
Toe-in (Unloaded Vehicle)
Specified Condition C + D: 0°11' +/- 0°11' (0.18° +/- 0.18°) B - A: 2.0 +/- 2.0 mm (0.0787 +/- 0.0787 in.) HINT:
Rotating the rear suspension toe adjust cam sub-assembly by one notch changes the toe by approximately 4.7 mm (0.185 in.).
- Tighten the nut of the toe control link sub-assembly (on the rear suspension member sub-assembly side).
Torque: 117 N.m (1193 kgf/cm, 86 ft.lbf)
NOTE:Hold the rear suspension toe adjust cam sub-assembly while rotating the nut.
- Loosen the nut of the toe control link sub-assembly (on the rear suspension member sub-assembly side).
- INSPECT REAR SUSPENSION
- Inspect the rear suspension member sub-assembly.

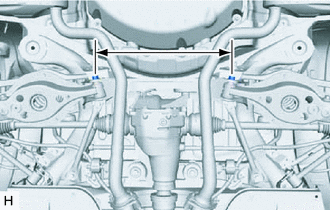

- Measure the distance between the centers of the 2 installation bolts of the rear No. 2 suspension arm assembly LH and RH.
Standard
496.5 to 503.5 mm (1.63 to 1.65 ft.)
If the distance is not within the specified range, replace the rear suspension member sub-assembly.
HINT:
Refer to the instructions for Removal and Installation of the rear suspension member sub-assembly.
Refer to REMOVAL [08/2015 - 10/2016]
- Measure the distance between the centers of the 2 installation bolts of the rear No. 2 suspension arm assembly LH and RH.
- Inspect the rear No. 2 suspension arm assembly.

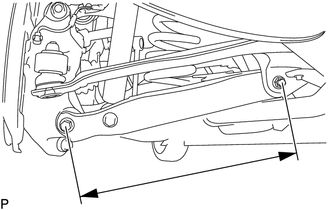

- Measure the distance between the centers of the 2 installation bolts of the rear No. 2 suspension arm assembly.
Standard
433.2 to 435.0 mm (1.421 to 1.426 ft.)
If the distance is not within the specified range, replace the rear No. 2 suspension arm assembly.
HINT:
Refer to the instructions for Removal and Installation of the rear No. 2 suspension arm assembly.
Refer to REMOVAL [06/2014 - 09/2020]
- Measure the distance between the centers of the 2 installation bolts of the rear No. 2 suspension arm assembly.
- Inspect the rear upper control arm assembly.
- Measure the distance between the centers of the 2 installation bolts of the rear upper control arm assembly.
Standard
298.5 to 299.5 mm (11.76 to 11.79 in.)
If the distance is not within the specified range, replace the rear upper control arm assembly.
HINT:
Refer to the instructions for Removal and Installation of the rear upper control arm assembly.
Refer to REMOVAL [04/2013 - ]
- Measure the distance between the centers of the 2 installation bolts of the rear upper control arm assembly.
- Inspect the rear suspension member sub-assembly.
- PLACE FRONT WHEELS FACING STRAIGHT AHEAD
- PERFORM YAW RATE AND ACCELERATION SENSOR CALIBRATION
Refer to CALIBRATION [04/2013 - 10/2016]
- ADJUST LANE DEPARTURE WARNING CAMERA (w/ Lane Departure Alert System)
Refer to ADJUSTMENT [04/2013 - 10/2016]
