Parts Location [09/2013 - ]: Illustration

Fig 1: Identifying Power Window Control System Components Location (1 Of 4)
GTY403628Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

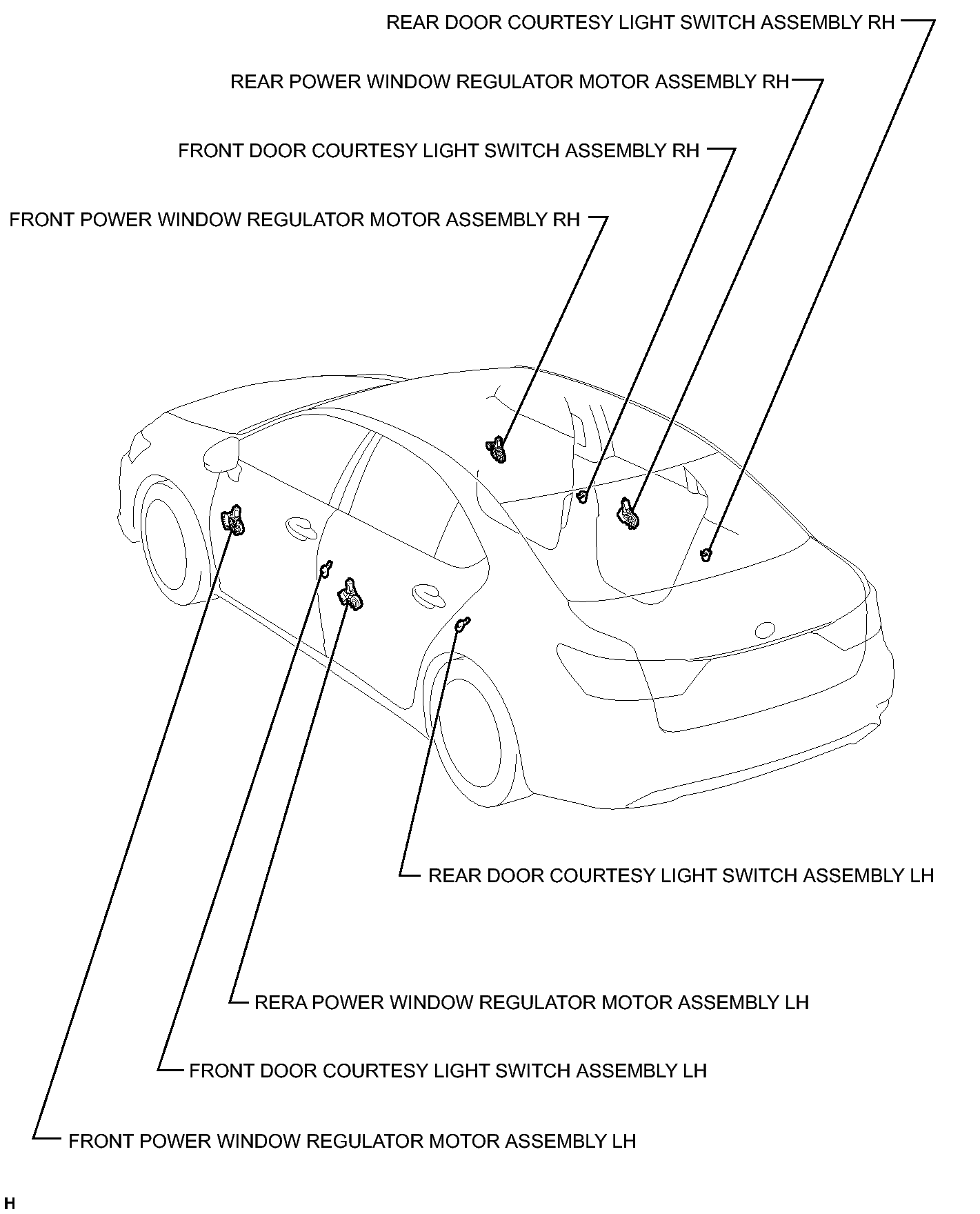

Fig 1: Identifying Power Window Control System Components Location (2 Of 4)
GTY414257Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002


Fig 1: Identifying Power Window Control System Components Location (3 Of 4)
GTY404432Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

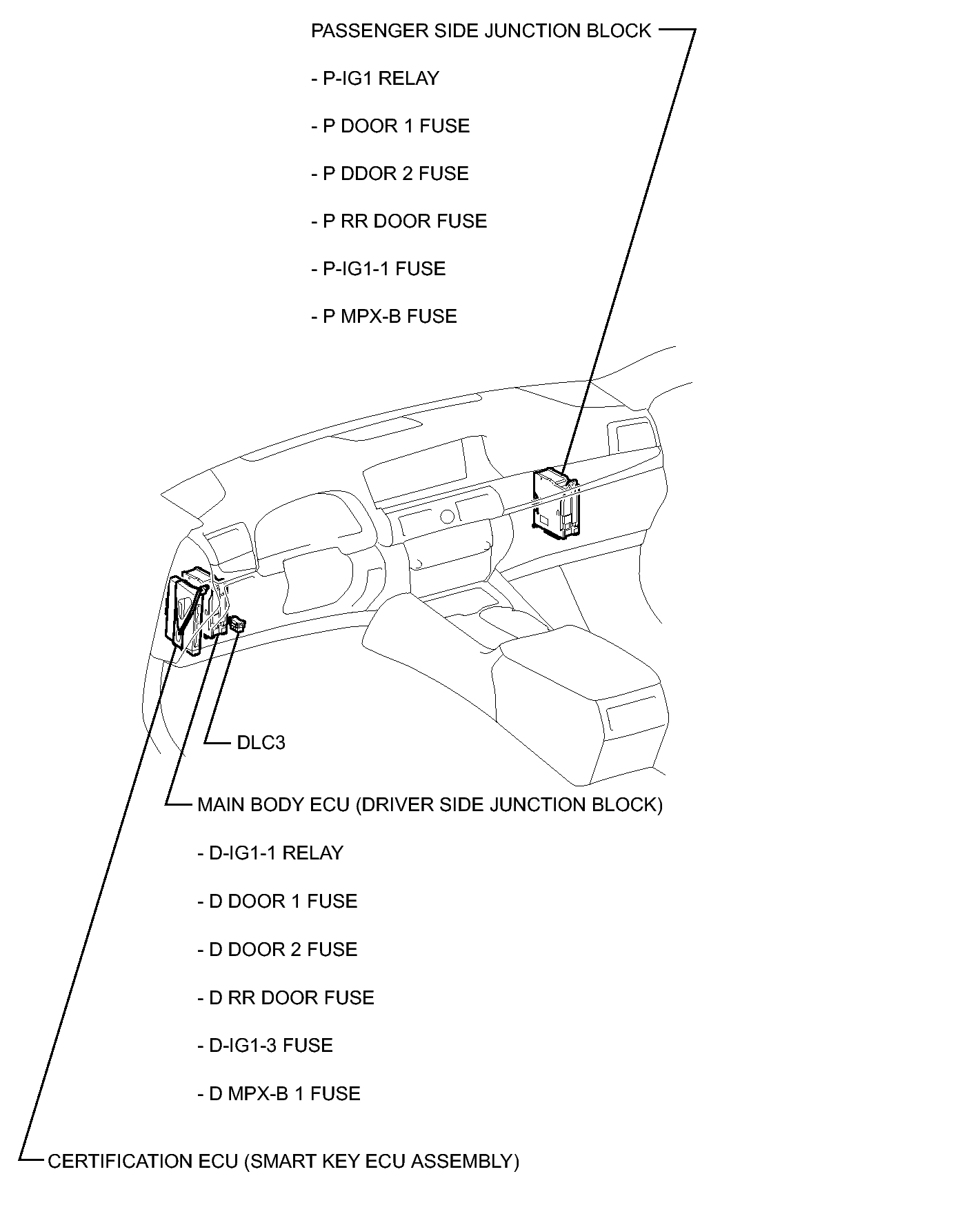

Fig 1: Identifying Power Window Control System Components Location (4 Of 4)
GTY411676Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
