Components [09/2013 - ]: Illustration

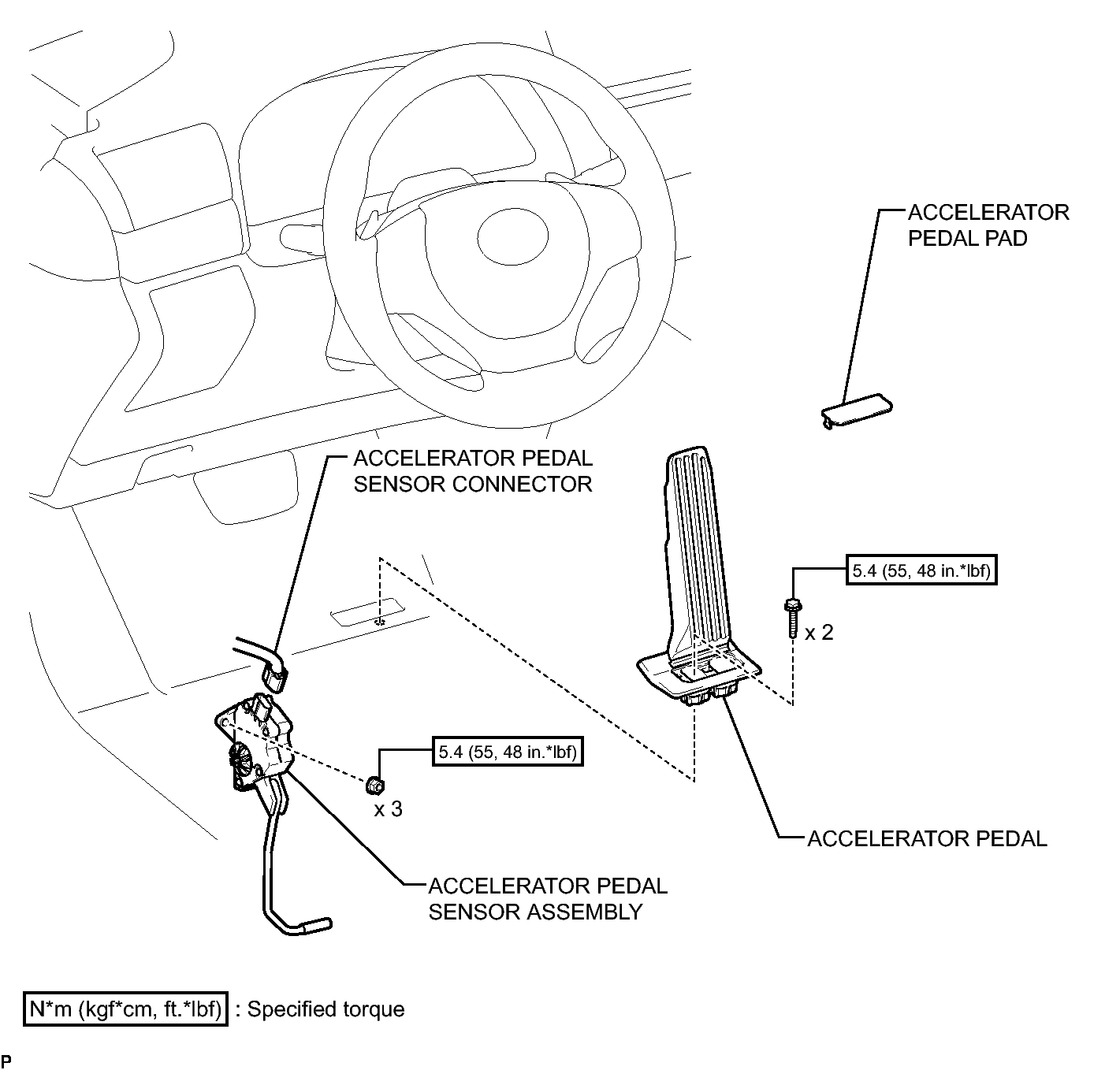

Fig 1: Accelerator Pedal Replacement Components With Torque Specifications

GTY462329

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
