In-Line Connector End View (AK1)

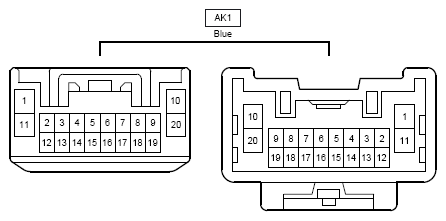

Fig 1: In-Line Connector End View (AK1)
G10303684Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
