In-Line Connector End View (RQ1)

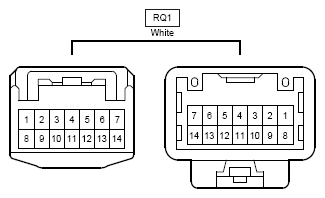

Fig 1: In-Line Connector End View (RQ1)
G10300513Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
