Active Control Engine Mount
›
Components [08/2014 - ]
›
Illustration
Components [08/2014 - ]: Illustration

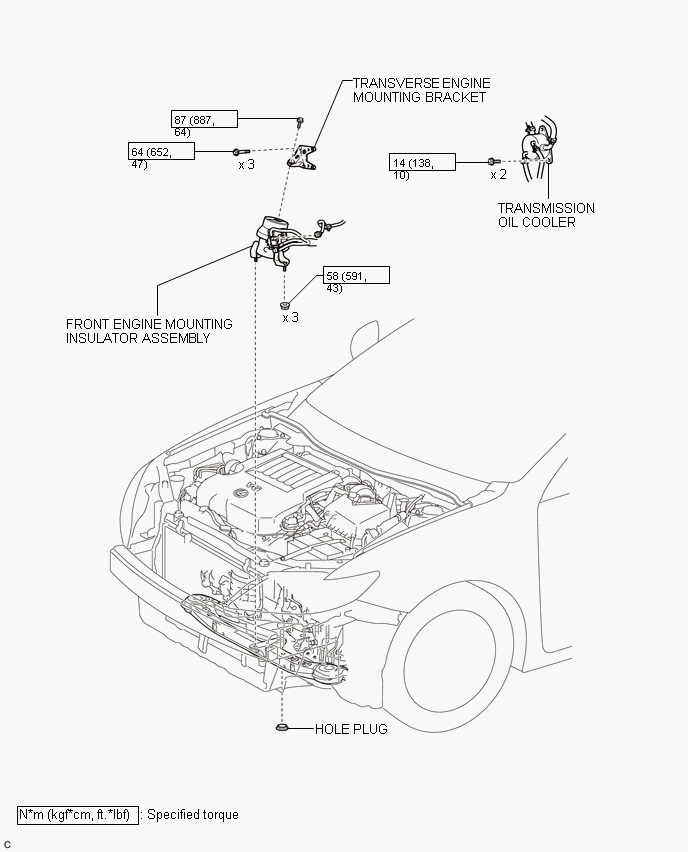

Fig 1: Identifying Active Control Engine Mount Replacement Components With Torque Specifications
Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
