Components [09/2014 - 10/2015]: Illustration

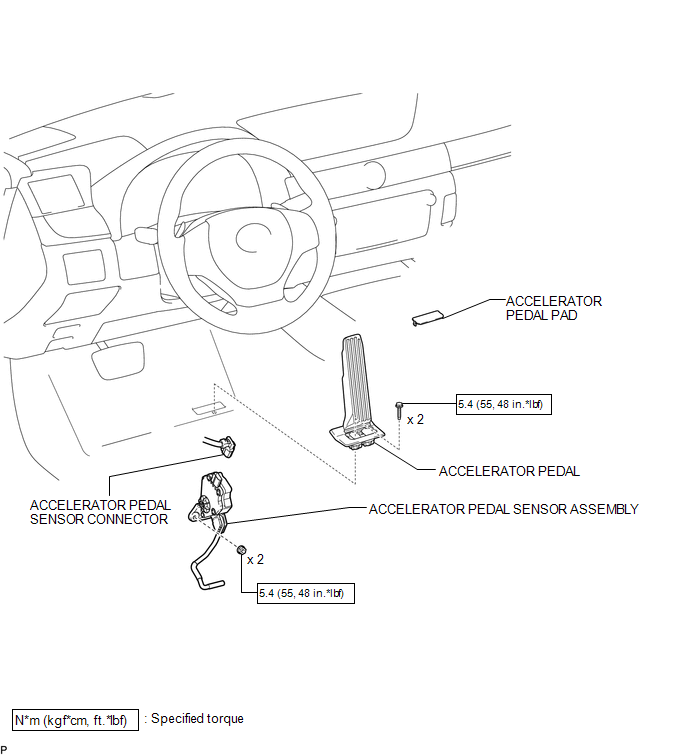

Fig 1: Accelerator Pedal Sensor Replacement Components With Torque Specifications
GTY538289Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
