Removal [09/2014 - 10/2015]: Procedure

  1. REMOVE FUEL INJECTOR SEAL

    (Refer to REMOVAL [09/2014 - 10/2015] )

  2. REMOVE KNOCK SENSOR

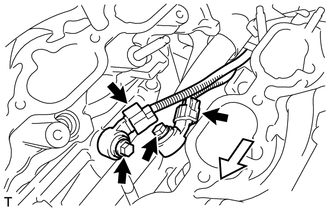

    1. Disconnect the 2 knock sensor connectors.
      GTY416823Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
      TEXT IN ILLUSTRATION

      Front
    2. Remove the 2 bolts and 2 knock sensors.
