- REMOVE ENGINE ROOM SIDE COVER
Refer to PROCEDURE - Step 1
- REMOVE COOL AIR INTAKE DUCT SEAL
Refer to PROCEDURE - Step 2
- REMOVE V-BANK COVER SUB-ASSEMBLY
Refer to PROCEDURE - Step 3
- REMOVE ENGINE UNDER COVER
Refer to PROCEDURE - Step 10
- DRAIN ENGINE COOLANT
Refer to PROCEDURE - Step 4
- REMOVE INTAKE AIR SOUND CREATOR
HINT:
Only perform this procedure when replacement of the intake air sound creator is necessary.
 Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
|
Disconnect the hose clamp.
- Remove the bolt and intake air sound creator.
- DISCONNECT NO. 2 VENTILATION HOSE

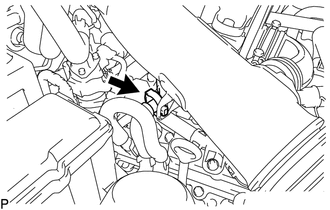

- Disconnect the ventilation hose from the cylinder head.
 Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
|
- REMOVE AIR CLEANER CAP WITH AIR CLEANER HOSE
- Disconnect the mass air flow meter connector.
 Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
|
- Disconnect the clamp from the air cleaner.
- Disconnect the VSV hose.
 Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
|
- Disconnect the 4 clamps.
 Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
|
- Remove the hose clamp and air cleaner cap with air cleaner hose.
- REMOVE THROTTLE BODY WITH MOTOR ASSEMBLY

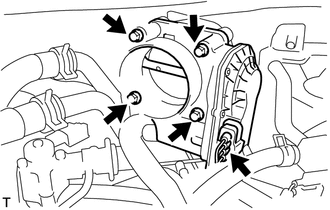

- Disconnect the throttle motor connector.
 Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
|
- Remove the 4 bolts and disconnect the throttle body with motor assembly from the intake air surge tank.

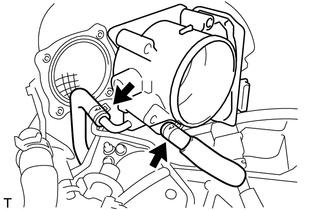

- Disconnect the 2 water by-pass hoses from the throttle body with motor assembly.
 Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
|
- Remove the throttle body with motor assembly and gasket.
