Home › Lexus › 2015 › GS 350 Base, AWD › Repair and Diagnosis › Restraints › Restraints Control Systems › Pre-Collision System - Diagnostics - Introduction › Pre-Collision System › Parts Location [09/2014 - 10/2015] › Illustration

Parts Location [09/2014 - 10/2015]: Illustration

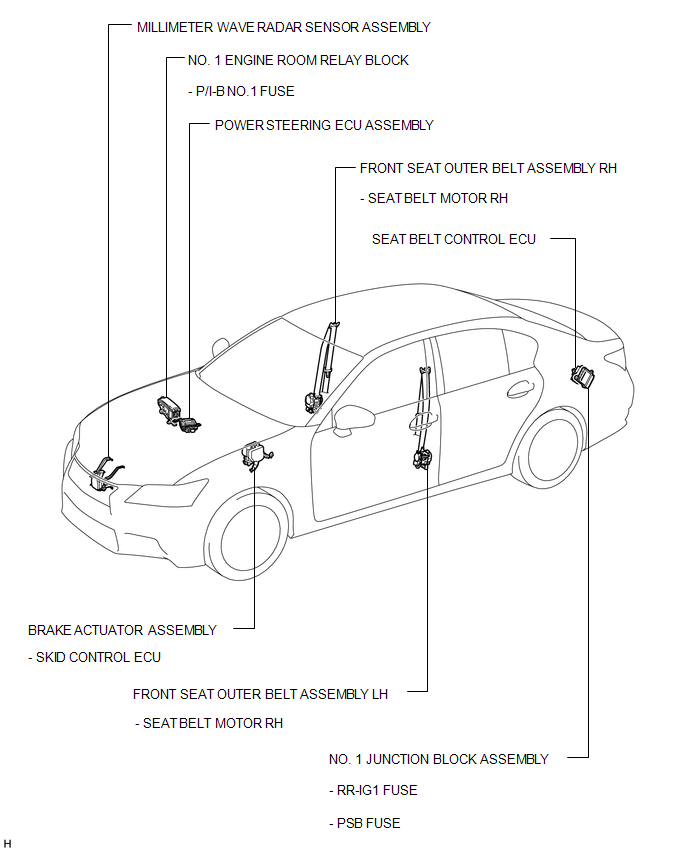

GTY680471Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

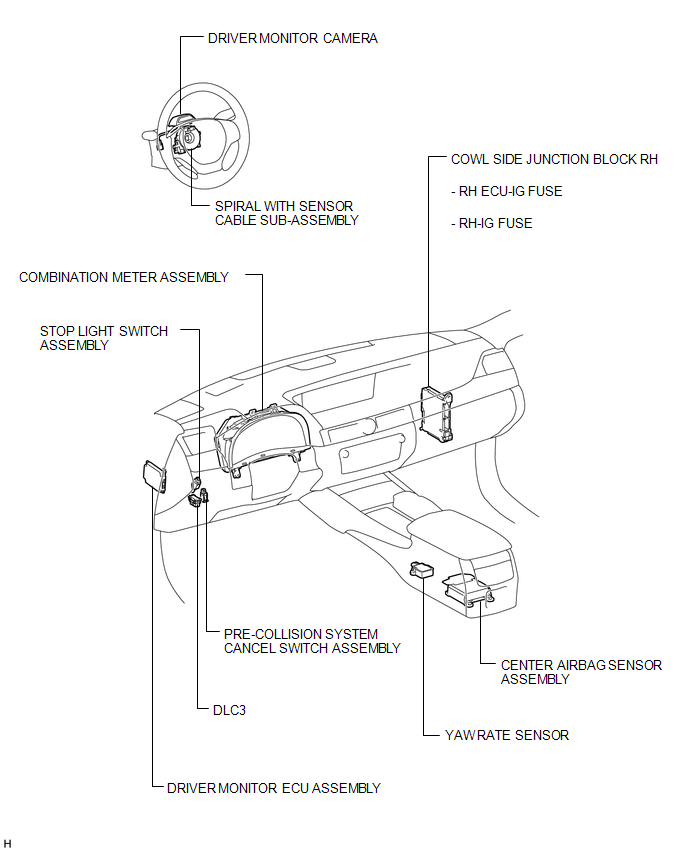

GTY413130Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

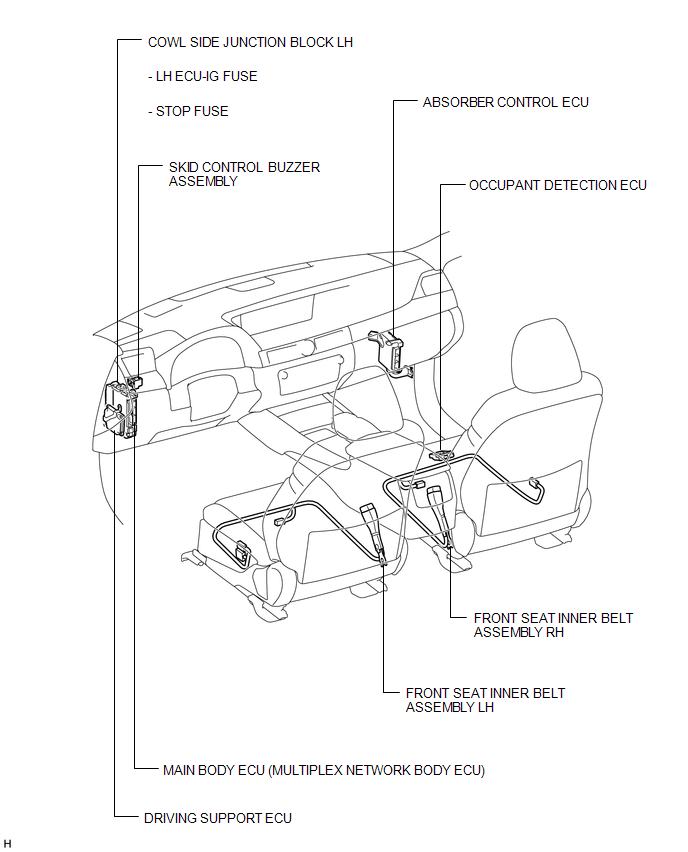

GTY681015Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
