In-Line Connector End View (KG3)

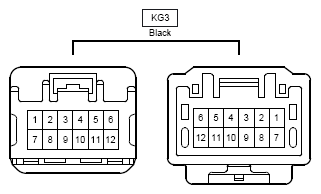

Fig 1: In-Line Connector End View (KG3)
G10302515Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
