Components [04/2013 - 08/2015]

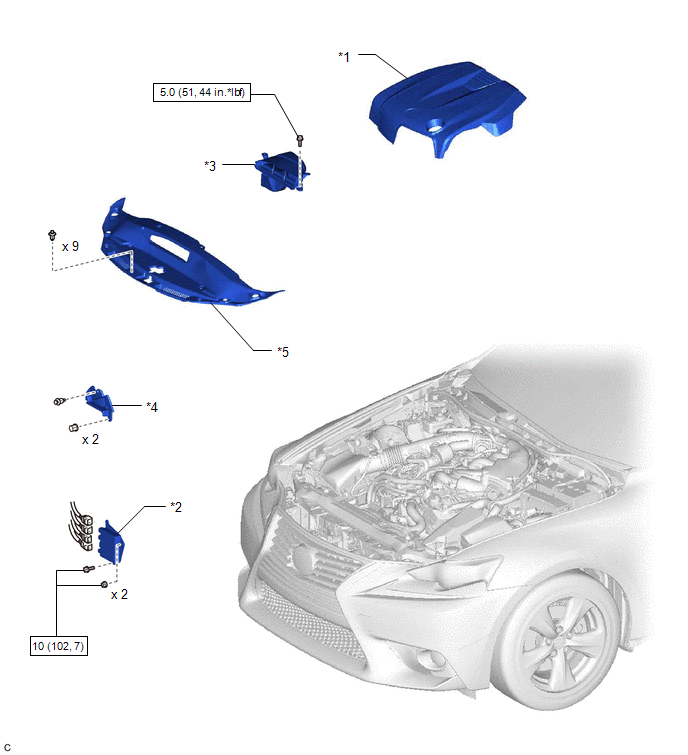

Fig 1: Injector Driver Replacement Components With Torque Specifications [04/2013 - 08/2015]

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

*1	V-BANK COVER SUB-ASSEMBLY	*2	INJECTOR DRIVER
*3	INLET NO. 1 AIR CLEANER	*4	NO. 1 ENGINE COVER
*5	COOL AIR INTAKE DUCT SEAL	-	-
	N.m (kgf/cm, ft.lbf): Specified torque	-	-
