Removal [04/2013 - 08/2015]: Procedure

  1. REMOVE FUEL INJECTOR SEAL

    Refer to REMOVAL [04/2013 - 08/2015]

  2. REMOVE KNOCK CONTROL SENSOR

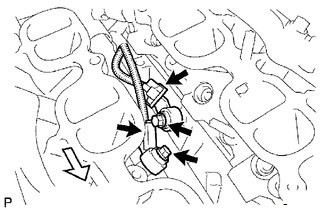

    1. Disconnect the 2 knock control sensor connectors.
      GTY462763Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
      Engine Front
    2. Remove the 2 bolts and 2 knock control sensors from the cylinder block sub-assembly.
