Components [10/2014 - ]: Illustration

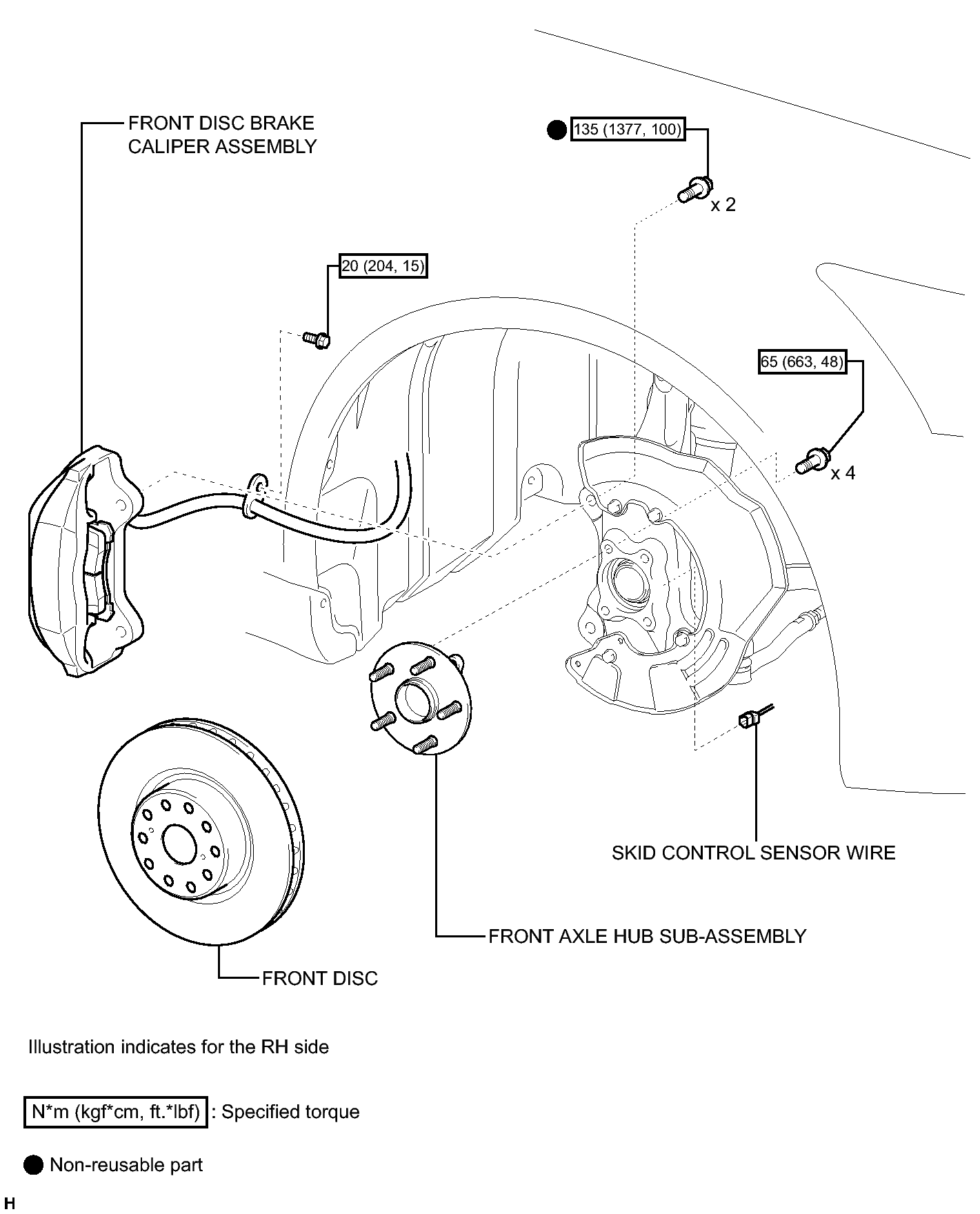

Fig 1: Identifying Front Speed Sensor (For 2WD) Replacement Components With Torque Specifications (1 Of 2)
GTY405019Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

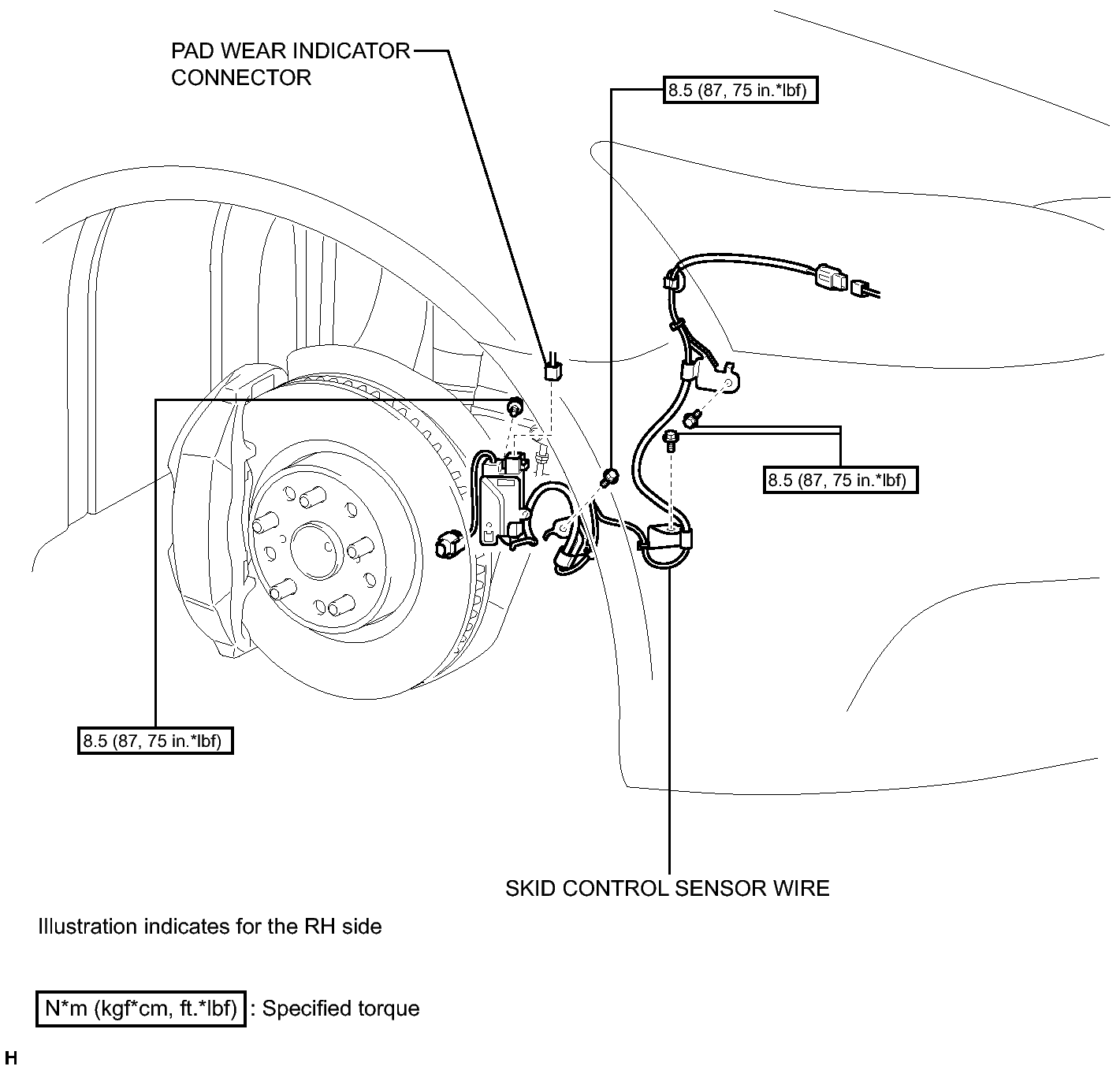

Fig 1: Identifying Front Speed Sensor (For 2WD) Replacement Components With Torque Specifications (2 Of 2)
GTY402016Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
