Driver Monitor Camera
›
Components [10/2014 - ]
›
Illustration
Components [10/2014 - ]: Illustration

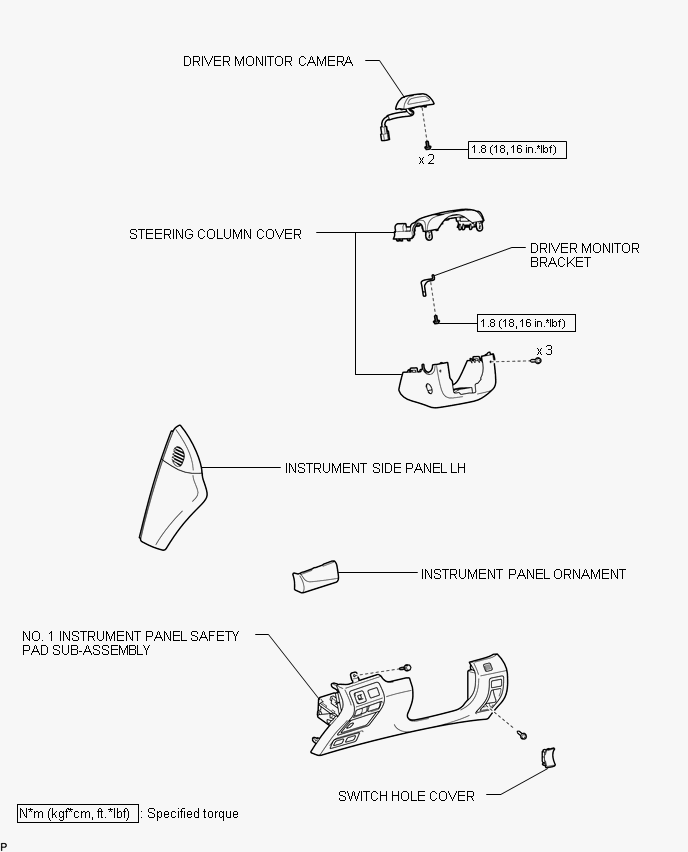

Fig 1: Identifying Driver Monitor Camera Replacement Components With Torque Specifications
Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
