Components [08/2014 - ]: Illustration

Fig 1: Yaw Rate And Acceleration Sensor Replacement Components (1 Of 2)
GTY354793Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

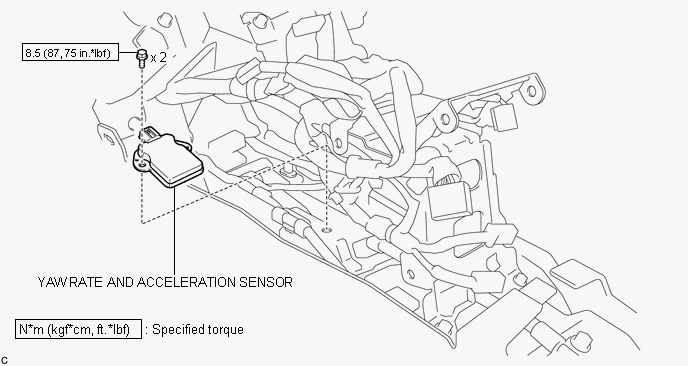

Fig 1: Yaw Rate And Acceleration Sensor Replacement Components With Torque Specifications (2 Of 2)
GTY526730Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
