Removal [07/2015 - ]: Procedure

  1. REMOVE NO. 1 ENGINE COVER SUB-ASSEMBLY

    Refer to PROCEDURE - Step 21

  2. REMOVE CAMSHAFT POSITION SENSOR

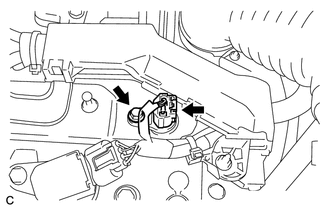

    1. Disconnect the camshaft position sensor connector.
      GTY316249Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
    2. Remove the bolt and camshaft position sensor.
