Removal [07/2015 - ]: Procedure

  1. REMOVE HEATED OXYGEN SENSOR

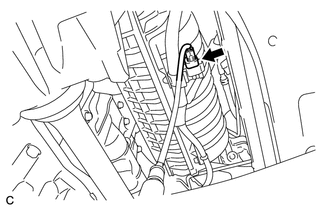

    1. Disconnect the heated oxygen sensor connector.
      GTY539692Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
    2. Using SST, remove the heated oxygen sensor from the front exhaust pipe.
      GTY620813Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
      • SST: 09224-00011
