On-Vehicle Inspection [07/2015 - ]: Procedure

  1. INSPECT INTAKE SYSTEM

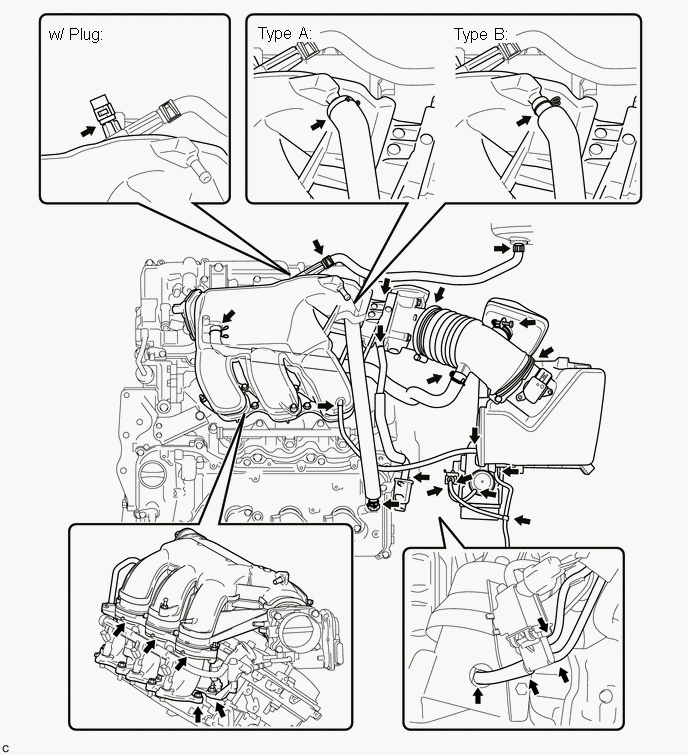

    1. Check that there are no vacuum leaks at the points shown in the illustration.
      GTY641190Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

      HINT:

      Perform "Inspection After Repair" after repairing vacuum leaks in the intake system (Refer to INITIALIZATION [07/2015 - ] ).
