Installation [07/2015 - ]: Procedure

  1. INSTALL TCM
    1. Temporarily install the TCM to the automatic transaxle assembly with the 2 bolts.
    2. Tighten the 2 bolts in the order shown in the illustration.
      GTY634926Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

      Torque: 11 N*m (115 kgf*cm, 8 ft.*lbf)

    3. Connect the connector to the TCM.

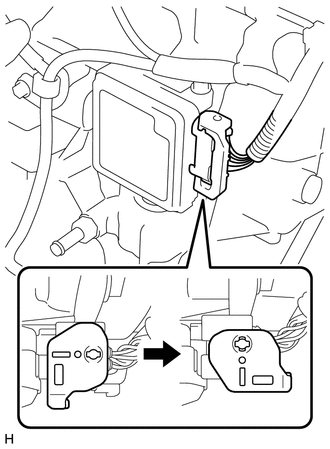

      GTY315616Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
    4. Turn the lock lever and secure the connector with the lock lever.
  2. INSTALL INLET NO. 1 AIR CLEANER

    Refer to PROCEDURE - Step 54

  3. INSTALL BATTERY

    Refer to PROCEDURE - Step 55

  4. INSTALL AIR CLEANER CASE SUB-ASSEMBLY

    Refer to PROCEDURE - Step 56

  5. INSTALL AIR CLEANER FILTER ELEMENT SUB-ASSEMBLY
  6. INSTALL AIR CLEANER CAP SUB-ASSEMBLY

    Refer to PROCEDURE - Step 2

  7. INSTALL INLET NO. 2 AIR CLEANER

    Refer to PROCEDURE - Step 59

  8. INSTALL COOL AIR INTAKE DUCT SEAL

    Refer to PROCEDURE - Step 3

  9. CONNECT CABLE TO NEGATIVE BATTERY TERMINAL
    NOTE:

    When disconnecting the cable, some systems need to be initialized after the cable is reconnected (Refer to INITIALIZATION [07/2015 - ] ).

  10. CHECK AUTOMATIC TRANSAXLE SYSTEM
    NOTE:

    If automatic transaxle parts have been replaced, refer to Parts Replacement Compensation Table to determine if any additional operations are necessary (Refer to PRECAUTION [07/2015 - ] ).
