Components [10/2015 - ]: Illustration

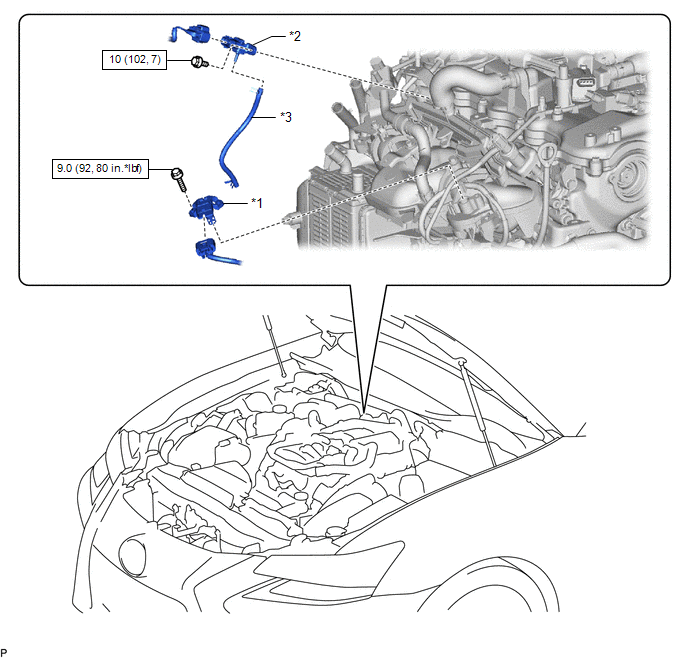

Fig 1: Manifold Absolute Pressure Sensor Replacement Components With Torque Specifications

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

Callout	Description	Callout	Description
*1	NO. 1 TURBO PRESSURE SENSOR	*2	NO. 2 TURBO PRESSURE SENSOR
*3	VACUUM HOSE	-	-
	N*m (kgf*cm, ft.*lbf): Specified torque	-	-
