Installation [10/2015 - ]: Procedure

WARNING: This page is about a different car, the 2020 Lexus GS 350, 2019 Lexus GS 350, 2018 Lexus GS 350, 2017 Lexus GS 350, and 2016 Lexus GS 350. However, it is still accessible from the selected car via links, so may be relevant.
  1. INSTALL KNOCK SENSOR

    HINT:

    Perform "Inspection After Repairs" after replacing the knock sensor. (Refer to INITIALIZATION [10/2015 - 09/2018] or refer to INITIALIZATION [09/2018 - ] )

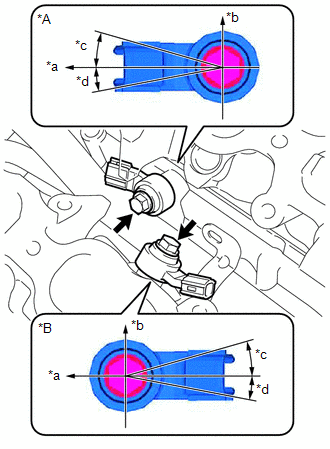

    1. Install the 2 knock sensors with the 2 bolts as shown in the illustration.
      GTY682117Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
      *A for Bank 2
      *B for Bank 1
      *a Engine Front
      *b Top
      *c 10°
      *d 5°

      Torque: 20 N*m (204 kgf*cm, 15 ft.*lbf)

    2. Connect the 2 connectors to the 2 knock sensors.
    3. Attach the 2 wire harness clamps to connect the sensor wire.
  2. INSTALL FUEL DELIVERY PIPE

    Refer to INSTALLATION [10/2015 - ]
