Installation [10/2015 - ]: Procedure

WARNING: This page is about a different car, the 2019 Lexus GS 300, 2018 Lexus GS 300, 2017 Lexus GS 200t, and 2016 Lexus GS 200t. However, it is still accessible from the selected car via links, so may be relevant.
  1. INSTALL ENGINE COOLANT TEMPERATURE SENSOR

    HINT:

    Perform "Inspection After Repairs" after replacing the engine coolant temperature sensor.

    Refer to INITIALIZATION [10/2015 - 09/2018] or INITIALIZATION [09/2018 - ]

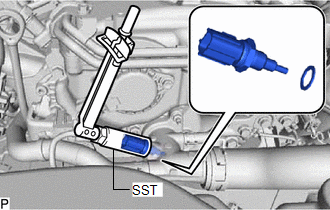

    1. Using a SST, install a new gasket and the engine coolant temperature sensor.

      Torque: 19.6 N*m (200 kgf*cm, 14 ft.*lbf)

      GTY649242Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
      • SST: 09817-33191
    2. Connect the connector to the engine coolant temperature sensor.
  2. INSTALL NO. 1 AIR CLEANER HOSE
    1. Connect the No. 1 air hose to the air cleaner cap sub-assembly and compressor inlet elbow.
    2. Install the bolt.

      Torque: 5.0 N*m (51 kgf*cm, 44 in.*lbf)

    3. Connect the PCV hose to the NO. 1 air hose and slide the hose clamp to secure the hose.
    4. Tighten the 2 hose clamps to secure the No. 1 air cleaner hose.

      Torque: 4.0 N*m (41 kgf*cm, 35 in.*lbf)

  3. ADD ENGINE COOLANT

    Refer to PROCEDURE - Step 2

  4. INSPECT FOR COOLANT LEAK

    Refer to PROCEDURE - Step 1
