Installation [10/2015 - ]: Procedure

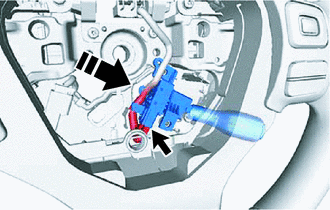

1. Insert the cruise control main switch as shown in the illustration.

   Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

   Insert in this Direction

2. Connect the connector.

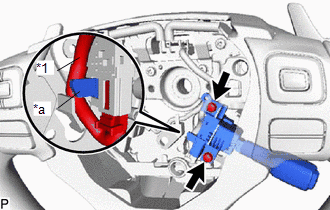

3. As shown in the illustration, pass the cruise control switch wire under the rib, and install the cruise control main switch with the 2 screws.

   Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

   *1	Cruise Control Switch Wire
   *a	Rib

   Torque: 2.4 N*m (24 kgf*cm, 21 in.*lbf)

Refer to INSTALLATION [10/2015 - ]
