Installation [09/2017 - ]: Procedure

  1. INSTALL FORWARD RECOGNITION WITH HEATER HOOD SUB-ASSEMBLY (w/ Camera Heater)
    NOTE:

    During work, do not touch the shaded area on the forward recognition with heater hood sub-assembly shown in the illustration.

    GTY781728Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

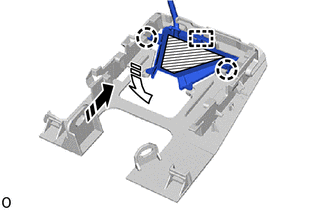

    1. Attach the guide in the direction indicated by the arrow (1) in the illustration.
      GTY785933Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
      Install in this Direction (1)
      Install in this Direction (2)
      Heater Area
    2. Attach the claw in the direction indicated by the arrow (2) in the illustration.
      NOTE:

      Do not press the heater area.

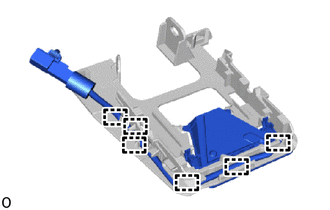

    3. Attach the guide to install the wire harness to the forward recognition bracket as shown in the illustration.
      GTY828732Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
    4. Attach the connector clamp to install the forward recognition with heater hood sub-assembly.
      GTY781783Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

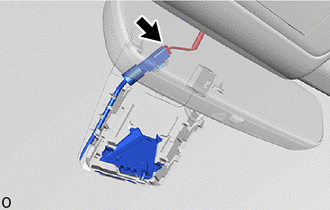

    5. Connect the connector.
      GTY820884Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
  2. INSTALL FORWARD RECOGNITION CAMERA (CAMERA SENSOR)

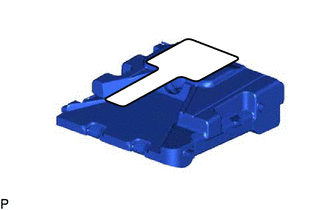

    1. When using a new forward recognition camera (camera sensor):
      GTY562490Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
      1. Remove the protective film.
        NOTE:

        Do not touch the camera lens after removing the protective film.

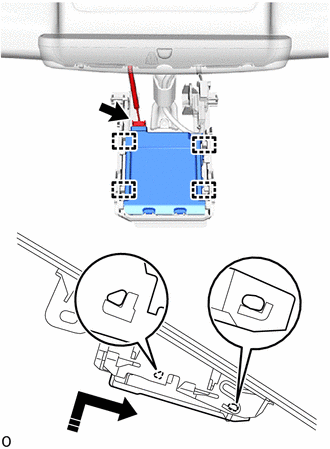

    2. w/o Camera Heater:
      GTY819518Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
      Install in this Direction
      1. Engage the guides as shown in the illustration.
        NOTE:

        Do not touch the camera lens.

      2. Connect the connector to install the forward recognition camera (camera sensor).

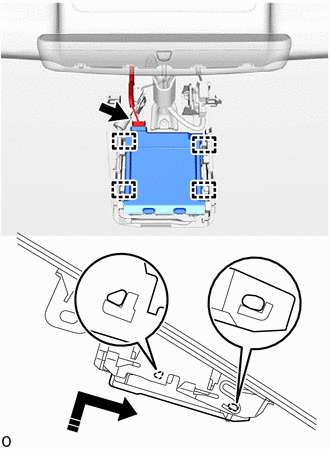

    3. w/ Camera Heater:
      GTY838506Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
      Install in this Direction
      1. Engage the guides as shown in the illustration.
        NOTE:

        Do not touch the camera lens.

      2. Connect the connector to install the forward recognition camera (camera sensor).
  3. INSTALL FORWARD RECOGNITION LATCH
    NOTE:

    Before installing the forward recognition latch, make sure that the forward recognition camera is securely installed to the vehicle.

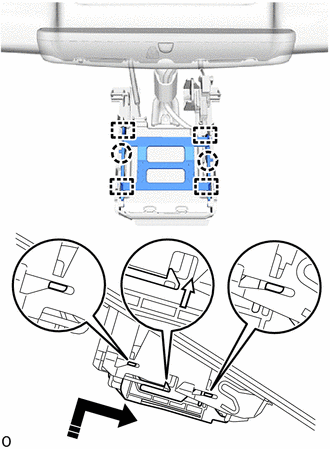

    1. w/o Camera Heater:
      GTY814694Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
      Install in this Direction
      1. Engage the guides and claws as shown in the illustration to install the forward recognition latch.

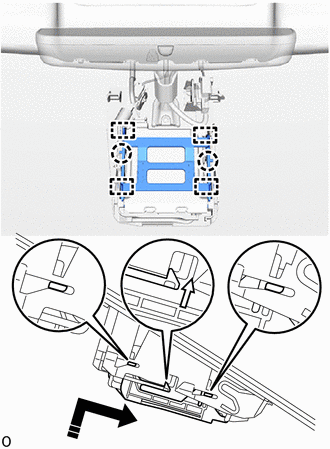

    2. w/ Camera Heater:
      GTY781722Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
      Install in this Direction
      1. Engage the guides and claws as shown in the illustration to install the forward recognition latch.
  4. INSTALL NO. 1 FORWARD RECOGNITION COVER

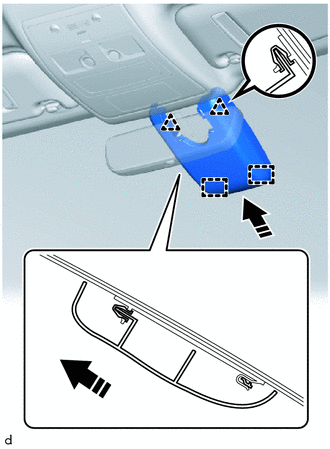

    1. Engage the clips and guides as shown in the illustration to install the No. 1 forward recognition cover.
      GTY658313Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
      Install in this Direction
  5. INSTALL NO. 2 FORWARD RECOGNITION COVER

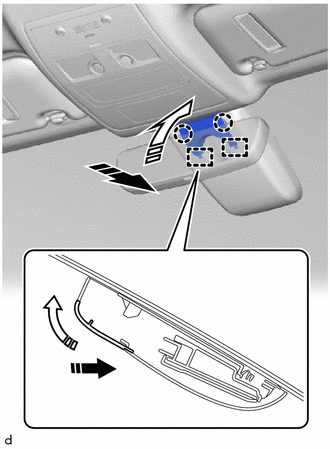

    1. Engage the guides and claws as shown in the illustration to install the No. 2 forward recognition cover.
      GTY612748Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
  6. ADJUST FORWARD RECOGNITION CAMERA
    1. If the forward recognition camera (camera sensor) has been replaced or the windshield glass has been removed and installed, it is necessary to perform Recognition Camera/Target Position Memory and Recognition Camera Axis Adjust.

      Refer to ADJUSTMENT [09/2017 - ]
