Components [10/2015 - ]: Illustration

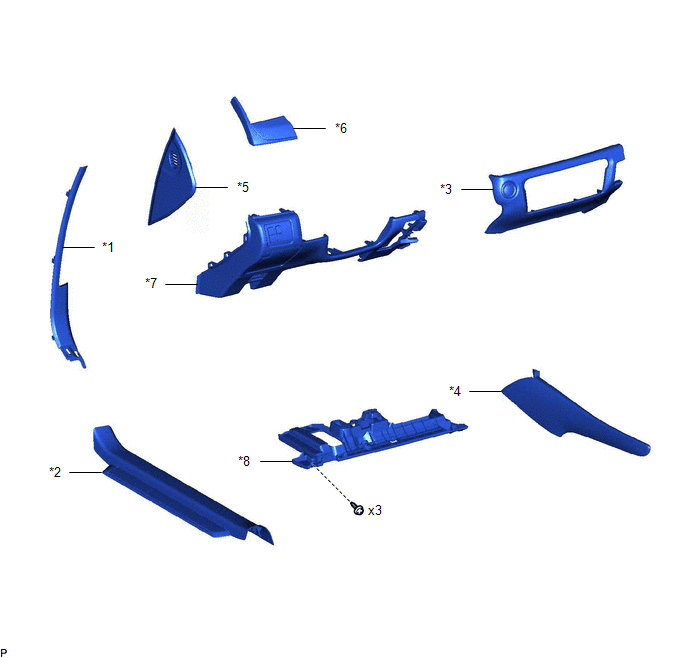

Fig 1: VSC Off Switch Replacement Components (1 of 2)

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

*1	FRONT DOOR OPENING TRIM COVER LH	*2	FRONT DOOR SCUFF PLATE LH
*3	INSTRUMENT CENTER CLUSTER FINISH PANEL SUB-ASSEMBLY	*4	INSTRUMENT PANEL FINISH PANEL END LH
*5	INSTRUMENT SIDE PANEL LH	*6	NO. 1 INSTRUMENT PANEL GARNISH SUB-ASSEMBLY
*7	NO. 1 INSTRUMENT PANEL SAFETY PAD SUB-ASSEMBLY	*8	NO. 1 INSTRUMENT PANEL UNDER COVER SUB-ASSEMBLY

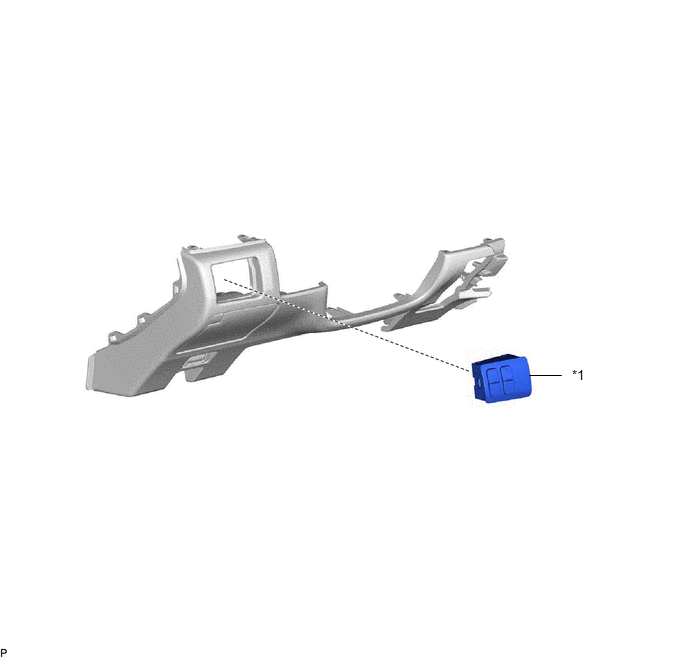

Fig 1: VSC Off Switch Replacement Components (2 of 2)

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

*1

INTEGRATION CONTROL AND PANEL ASSEMBLY

-

-
