Pre-Collision System (Service Information)
›
Driver Monitor Ecu
›
Components [08/2015 - 08/2019]
Components [08/2015 - 08/2019]

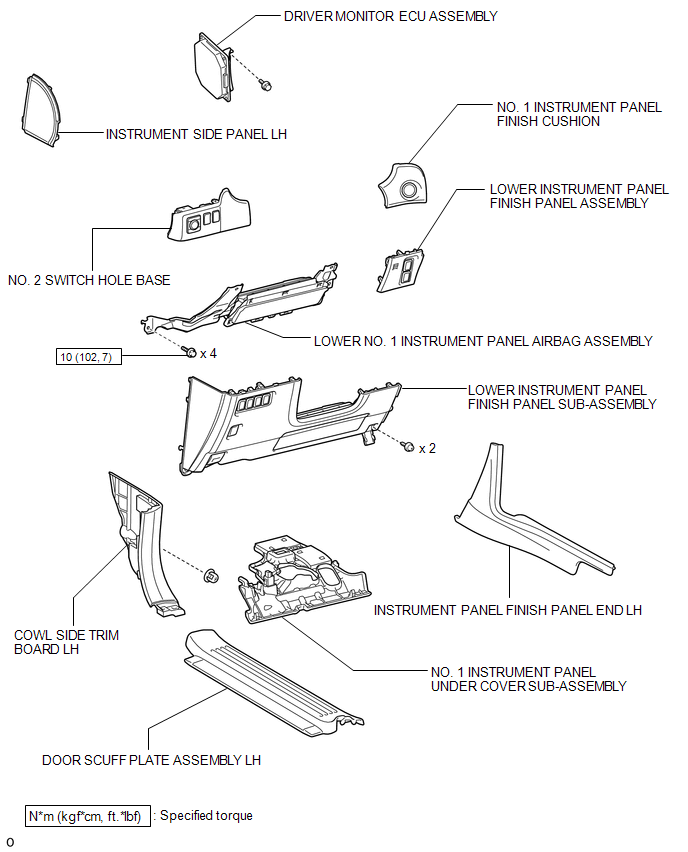

Fig 1: Driver Monitor ECU Replacement Components With Torque Specifications
Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
