Components [04/2013 - 10/2017]

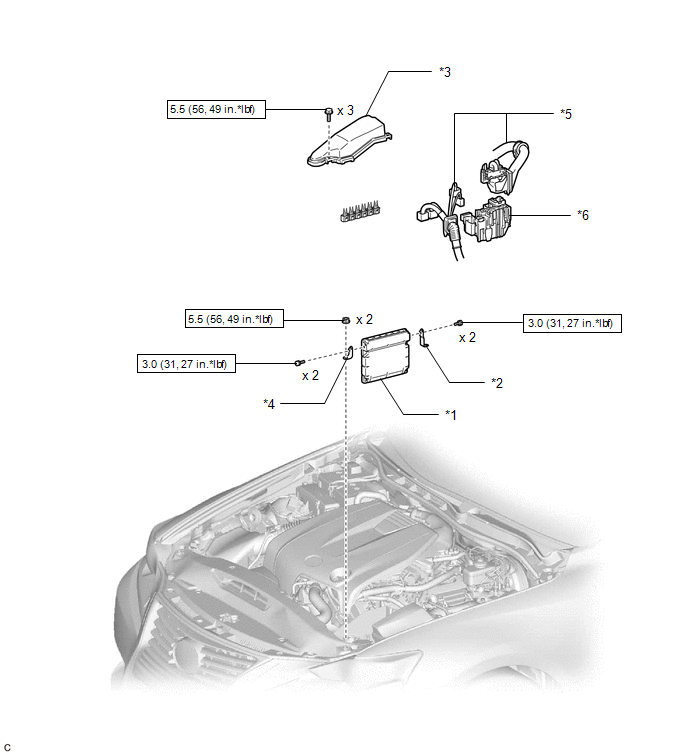

Fig 1: ECM Replacement Components With Torque Specifications

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

*1	ECM	*2	NO. 1 ECM BRACKET
*3	ENGINE ROOM ECU COVER	*4	NO. 2 ECM BRACKET
*5	WIRE HARNESS	*6	CONNECTOR HOLDER
	N*m (kgf*cm, ft.*lbf): Specified torque	-	-
