Components [04/2013 - 10/2017]

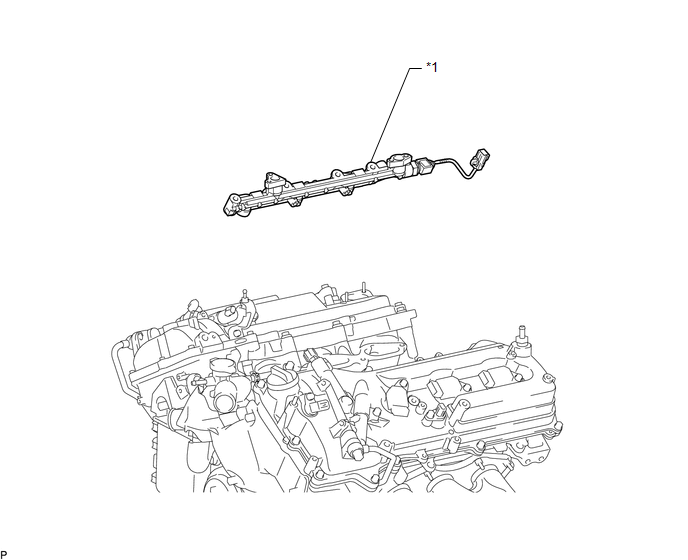

Fig 1: Fuel Pressure Sensor Replacement Components

GTY496988

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

*1

FUEL DELIVERY PIPE SUB-ASSEMBLY (FUEL PRESSURE SENSOR)

-

-
